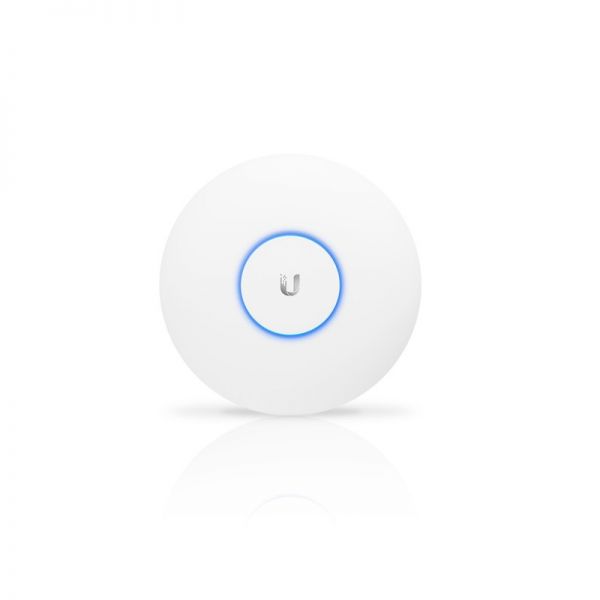

UAP-nanoHD Overview
The UniFi nanoHD is a compact 4×4 MU-MIMO 802.11ac Wave 2 dual-band access point with an aggregate radio rate of over 2 Gbps and supports over 200 concurrent users. Engineered to take advantage of 802.11ac Wave 2,the UniFi nanoHD provides powerful multi-user support in an elegant, nano-sized design.
Quick Specs
Table 1 shows the Quick Specs.
| SKU | UAP-nanoHD |
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″) |
| Networking Interface | (1) RJ45 GbE |
| Buttons | (1) Reset to Defaults |
| Power Method | 802.3af |
| Power Supply | UniFi Switch (PoE) |
| Max. Power Consumption | 10.5W |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
Product Details
UAP-nanoHD provides these features:
ā Four-Stream 802.11ac Wave 2 Technology
ā”Simultaneous Dual-Band Radios
ā¢Supports 200+ Concurrent Users
ā£5 GHz Band 4×4 Multi-User MIMO with Radio Rate of 1.733 Gbps
ā¤2.4 GHz Band 2×2 MIMO with Radio Rate of 300 Mbps
ā„Powered by Gigabit 802.3af PoE+
Table 2 shows the supported switches.
| Product Name | Details |
|
US-8 |
UBNT UniFi US-8 Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-8-60W |
UBNT US-8-60W UniFi 8-Port Gigabit PoE Compliant Managed Switch, Enterprise |
|
US-8-150W |
UBNT UniFi US-8-150W Enterprise PoE 8-Port Managed PoE Gigabit Switch |
|
US-16-150W |
UBNT UniFi US-16-150W Enterprise PoE 16-Port Managed PoE Gigabit Switch |
|
US-24 |
UBNT US-24 UniFi 24-Port Gigabit PoE Compliant Managed Switch, Enterprise |
| US-24-250W | UBNT UniFi US-24-250W Enterprise PoE 24-Port Managed PoE Gigabit Switch |
Compare to Similar Items
Table 3 shows the comparison.
| Product Name | UAP-nanoHD | UAP-AC-LITE | UAP-AC-IW with Gigabit PoE Power Supply |
| Dimensions | 160 x 32.65 mm | 160 x 31.45 mm | 139.7 x 86.7 mm |
| Environment | Indoor | Indoor | Indoor |
| 2.4 GHz Radio Rate | 300Mbps | 300 Mbps | 300 Mbps |
| 5 GHz Radio Rate | 1733Mbps | 867 Mbps | 867 Mbps |
| PoE Mode | 802.3af | 802.3af/A PoE & 24V PoE | 802.3at PoE+ |
| Ports | (1)10/100/1000 Ethernet | (1)10/100/1000 Ethernet | (3)10/100/1000 Ethernet |
UAP-nanoHD Specification
UAP-nanoHD Specification |
|
| Dimensions | 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29″) |
| Networking Interface | (1) RJ45 GbE |
| Buttons | (1) Reset to Defaults |
| Power Method | 802.3af |
| Power Supply | UniFi Switch (PoE) |
| Max. Power Consumption | 10.5W |
| Operating Frequency | 2.4 GHz 5 GHz |
| Max. TX Power 2.4 GHz 5 GHz |
23 dBm 26 dBm |
| Antenna Gain 2.4 GHz 5 GHz |
2.8 dBi 3 dBi |
| MIMO 2.4 GHz 5 GHz |
2×2 4×4 |
| Throughput 2.4GHz 5GHz |
300 Mbps 1733 Mbps |
| Wi-Fi Standards | 802.11 a/b/g/n/ac/ac-wave2 |
| Wireless Security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | 8 per Radio |
| Mounting | Wall/Ceiling (Kits Included) |
| Operating Temperature | -10 to 70Ā° C (14 to 158Ā° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
