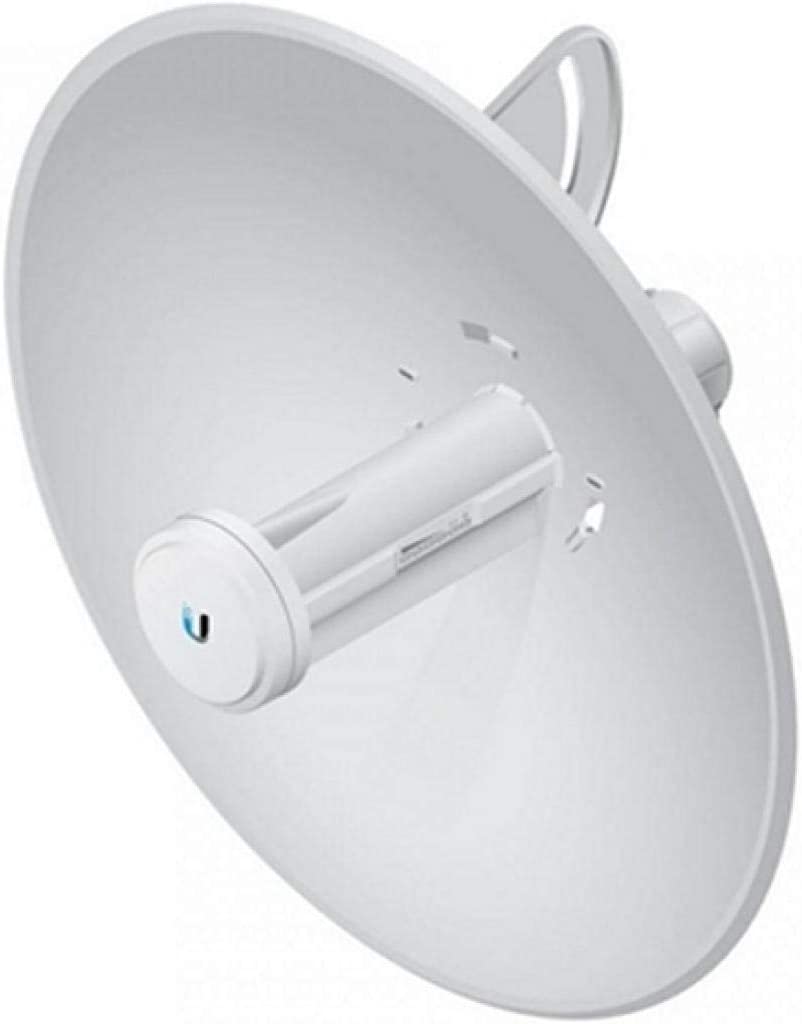

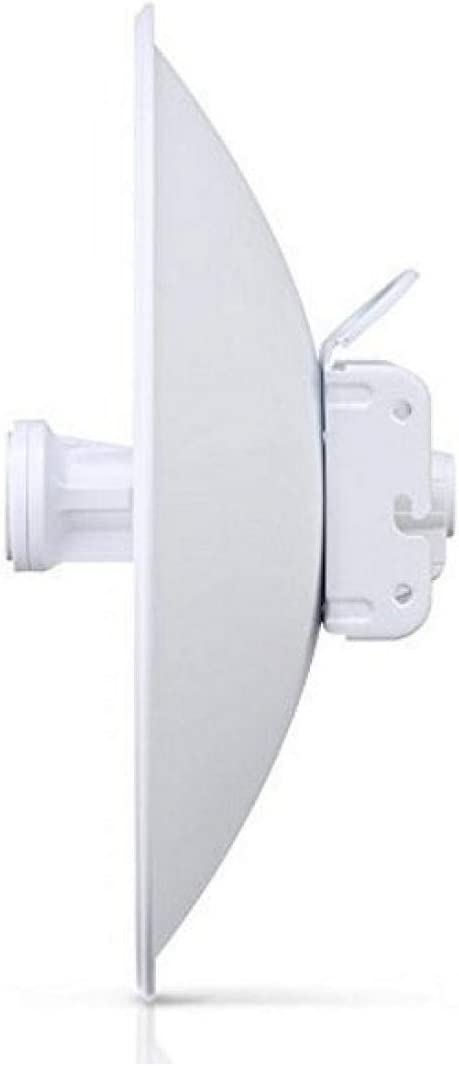

UBIQUITI – Access point UBIQUITI PBE-5AC-GEN2 5 GHz 25 dBi


1,999.00 د.إ

Ubiquiti PowerBeam PBE-5AC-Gen2 (5-pack), 25 dBi gain, 802.11ac, 1x Gigabit LAN, throughput speeds up to 450+ Mbps and signal ranges up to 25+ km, integrates a separate Wi-Fi radio for fast and easy setup using mobile device

Features:

– Highly Efficient Antenna Beam Performance
– Custom Ubiquiti airMAX ac Processor
– Dedicated Wi-Fi Radio for Management
– up to 450+ Mbps Throughput
– Proprietary InnerFeed Technology
– Innovative Snap and Lock Assembly
– Powered with Gigabit PoE

SKU: UBIQUITI PBE-5AC-GEN2 Category: Tags: , , , ,

Operating Frequency: 2412 – 2472 MHz; 5150 – 5875 MHz
Max. Power Consumption: 8.5W
Power Supply: 24V, 0.5A Gigabit PoE Adapter
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20 to 26VDC
Gain: 25 dBi
Networking Interface (1): 10/100/1000 Ethernet Port
Processor Specs: MIPS 74 Kc
Memory: 64 MB DDR2
LEDs: Power, Ethernet, (4) Signal Strength
Channel Sizes:
PtP Mode: 10/20/30/40/50/60/80 MHz
PtMP Mode: 10/20/30/40 MHz

Enclosure Characteristics:
Antenna Feed: Outdoor UV Stabilized Plastic
Dish Reflector: Powder-Coated SPCC

Mounting: Pole-Mounting Kit (Included)

Wind Loading: 380 N @ 200 km/h (85.4 lbf @ 125 mph)

Wind Survivability: 200 km/h (125 mph)

ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature: -40 to 70° C (-40 to 158° F)

Operating Humidity: 5 to 95% Noncondensing

RoHS Compliance: Yes

Salt Fog Test: IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test: IEC 68-2-6

Temperature Shock Test: IEC 68-2-14

UV Test: IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test: ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Certifications: FCC, IC, CE

Dimensions (single): 420 x 420 x 230 mm (16.54 x 16.54 x 9.06″)

Weight (single): 2.22 kg (4.89 lbs)
