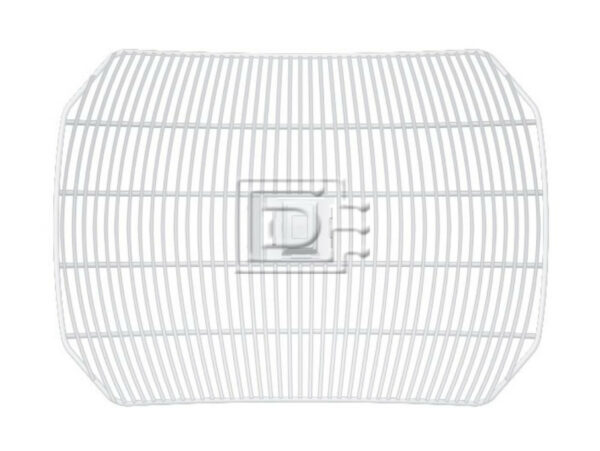

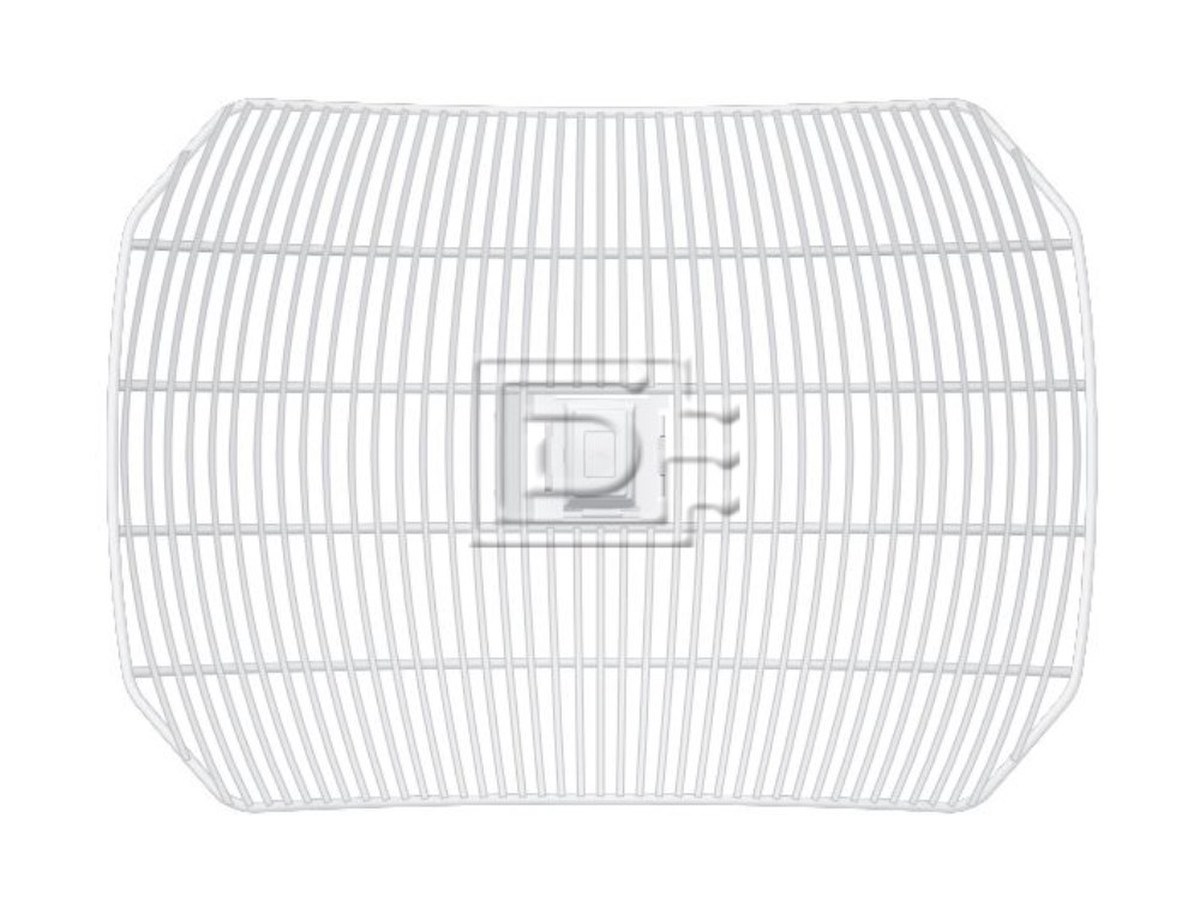

Ubiquiti Networks AG-HP-2G20 Wireless Broadband Antenna


Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

Bays/Ports/Slots:Ā 1

Wattage/VA:Ā 3W

Voltage:Ā 24V

499.00 د.إ

Ubiquiti Networks AG-HP-2G20 airGrid M2 HP Wireless Broadband Antenna – Brand New

Ubiquiti Networks AG-HP-2G20 airGrid M2 HP 20dBi airMAX Wireless Broadband Antenna – Brand New

airGridā„¢M
Utilizing InnerFeedā„¢ technology, the new airGridā„¢M HP Series from Ubiquiti Networksā„¢ represents the latest evolution of outdoor wireless broadband devices. The revolutionary InnerFeed technology integrates the entire radio system into the feedhorn of the antenna. airGridM combines Ubiquiti’s InnerFeed and airMAXā„¢ (TDMA protocol) technologies to create a simple, yet extremely powerful and robust wireless CPE (Customer Premises Equipment).

Complete antenna and radio system integration provides affordable cost/performance solutions to the wireless broadband industry. airGridM operates in the worldwide, license-free frequency range of either 2 GHz or 5 GHz, and features breakthrough performance up to 100+ Mbps in real outdoor throughput and incredible range up to 30+ km.

The low-cost, high-performance, robust ā€œall-in-oneā€ design and light weight of airGridM make it versatile and ideal in several different applications.

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This ā€œtime slotā€ method eliminates hidden node collisions and maximizes airtime efficiency.

Compared to other systems in its class, the airGridM delivers superior performance in reduced latency, throughput, and scalability.

  • Intelligent QoSĀ Priority is given to voice/video for seamless access.
  • ScalabilityĀ High capacity and scalability.
  • Long DistanceĀ Capable of high-speed, 30+ km links.

Easy, No Tool Assembly
The updated mechanical design makes assembling and disassembling the airGridM, literally, a snap. No tools are required.

You simply snap the feed, antenna, mounting bracket and rear housing together for a secure, solid assembly.

airGrid M2 HP
Model: AG-HP-2G20

  • 2412 – 2462 MHz
  • 20 dBi
  • Antenna Size: 620 x 460 mm
SKU: AG-HP-2G20 Category:
SYSTEM INFORMATION
Model Number AG-HP-2G20
Processor Specs Atheros MIPS 24KC, 400 MHz
Memory Information 32 MB SDRAM, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port
REGULATORY/COMPLIANCE INFORMATION
Wireless Approvals FCC Part 15.247
IC RS210
CE
RoHS Compliance Yes
PHYSICAL/ELECTRICAL ENVIRONMENTAL
Enclosure Characteristics Outdoor UV Stabilized Plastic
Mounting Kit Pole Mounting Kit (Included)
Max Power Consumption 3 W
Power Supply 24V
0.5A PoE Adapter (Included)
Power Method Passive Power over Ethernet
(Pairs 4, 5+; 7, 8 Return)
Operating Temperature -30 to 75° C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETS1300-019-1.4
EN 302 326 DN2
SPECIFICATIONS
Dimensions 620 x 460 x 390 mm
(Mount Included)
Weight 2603 g
(Mount Included)
Wind Survivability 125 mph
Wind Loading 8 Ibf @ 125 mph
ANTENA/RADIO INFORMATION
Operation Frequency 2412 – 2462 MHz
Ourput Power 28 dBm
Max VSWR >1.5:1
Gain 20 dBi




ROHS Compliant

Weight:Ā 6Ā lb
