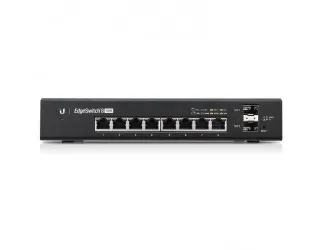

Ubiquiti Networks EdgeSwitch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black


10 Gbps, 8x RJ-45, 2x SFP, 150 W, PoE+, CLI, SSH

AED1,599.00

The fanless EdgeSwitchā„¢ 8 is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility. Gigabit Connectiviy The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall. Convenient PoE+ Support Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure. Optical Fiber Backhaul The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps. Powerful Performance The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps. Switching Capacity The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Advanced UI The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Category:
Switch type Managed
Quality of Service (QoS) support Y
Web-based management Y
System event log Y
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Console port RJ-45
Power connector DC-in jack
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
10G support N
Copper ethernet cabling technology 10BASE-T, 100BASE-T, 1000BASE-T
Port mirroring Y
Flow control support Y
Link aggregation Y
Broadcast storm control Y
Spanning tree protocol Y
Active link detection Y
VLAN support Y
Virtual LAN features Tagged VLAN, Port-based VLAN
Number of VLANs 255
MAC address table 8000 entries
Switching capacity 20 Gbit/s
Throughput 14.88 Mpps
Number of trunks 8
Jumbo frames support Y
DHCP features DHCP server
Access Control List (ACL) Y
Access Control List (ACL) rules 100
IGMP snooping Y
Security algorithms SNMP, SSH, SSH-2
MAC address filtering Y
SSH/SSL support Y
Authentication Guest VLAN, Port-based authentication
Multicast support Y
Stackable N
Product colour Black
LED indicators Activity, LAN, Link, PoE, Speed
Wall mountable Y
Certification CE, FCC, IC
Harmonized System (HS) code 85176990
Power supply included Y
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input voltage 42 – 56 V
Power consumption (max) 150 W
Power over Ethernet (PoE) Y
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) voltage range 50 – 75 V
Power over Ethernet (PoE) power per port 34.2 W
Operating temperature (T-T) -25 – 60 °C
Operating relative humidity (H-H) 5 – 95%
Width 204 mm
Depth 235 mm
Height 43 mm
Weight 1.72 kg
Mounting brackets included Y
