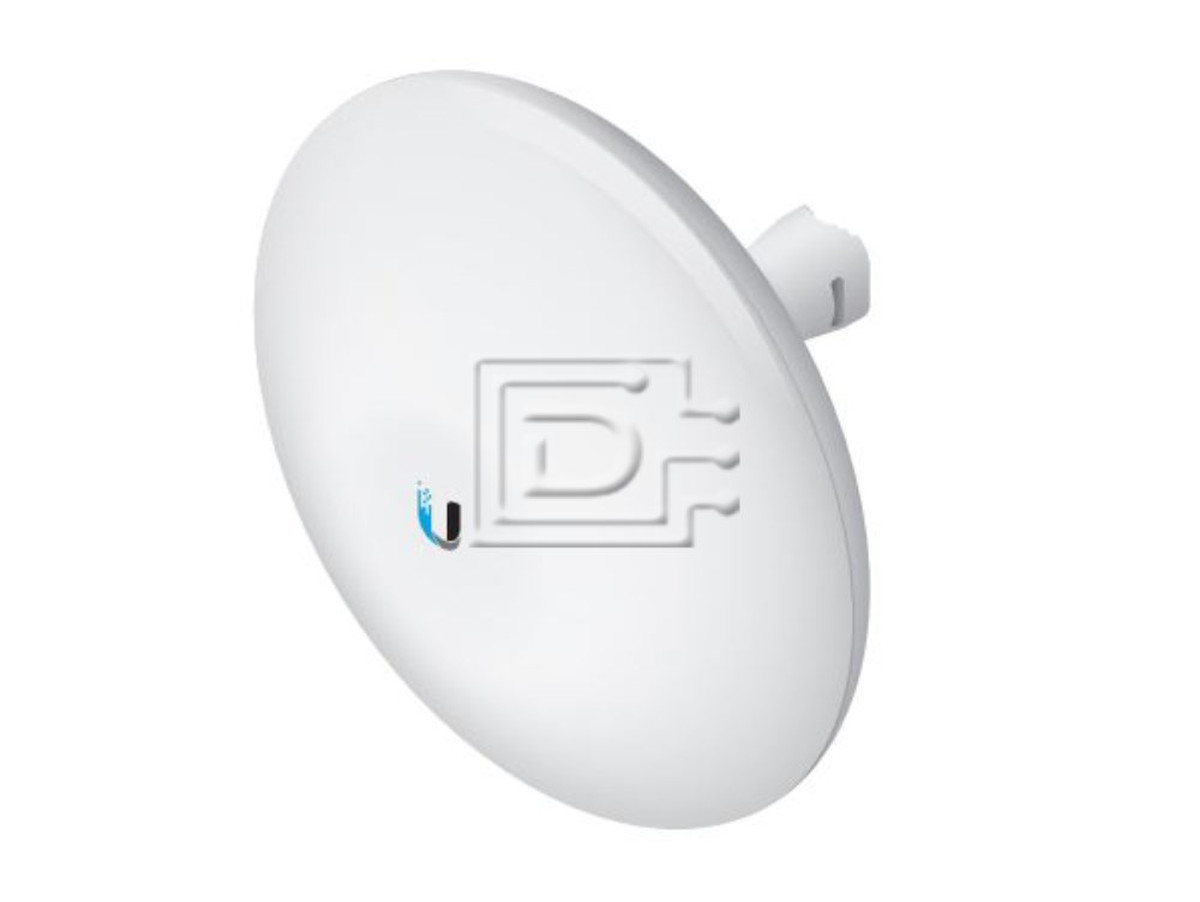

Ubiquiti Networks NBE-5AC-19 Bridge


Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

Bays/Ports/Slots:Ā 1

Wattage/VA:Ā 8W

Voltage:Ā 24V

599.00 د.إ

Ubiquiti Networks NBE-5AC-19 NanoBeam ac 5GHz High-Performance airMAX Bridge – Brand New

Ubiquiti Networks NBE-5AC-19 NanoBeam ac 5GHz High-Performance airMAX Bridge – Brand New

Overview
Ubiquiti Networks launches the latest generation of airMAXĀ® CPE (Customer Premises Equipment), the NanoBeamĀ® ac.

Improved Noise Immunity
The NanoBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam ac gets maximum gain out of the smallest footprint.

Providing high performance and an innovative form factor, the NanoBeam ac is versatile and cost effective to deploy.

SKU: NBE-5AC-19 Category:
SYSTEM AND REGULATORY/COMPLIANCE
Model Number NBE-5AC-19
Processor Specs Atheros MIPS 74c
720 MHz
Memory 128 MB DDR2
8 MB Flash
Networking Interface (1) 10/100/1000 Ethernet Port
Wireless Approvals FCC
IC
CE
RoHS Compliance Yes
PHYSICAL/ELECTRICAL/ENVIRONMENTAL
Dimensions 189 x 189 x 125
(7.44 x 7.44 x 4.92 in)
Weight 0.530 kg
(1.17 lb)
Power Supply 24V
0.5A Gigabit PoE
Power Method Passive Poe
(Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 20 – 26 VDC
Max Power Consumption 8W
Gain 19 dBi
Operating Frequency
Worldwide
USA
5150 – 5875 MHz
5725 – 5850 MHz
Wind Loading 45.4 N @ 200 km/h
(10.2 Ibf @ 125 mph)
Wind Survivability 200 km/h
125 mph
LEDs (1) Power
(1) LAN
(4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization Dual-Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount (Kit Included)
Wall-Mount
ESD/EMP Protection Air: +/- 24 kV
Contact +/- 24 kV
Operating Temperature -40 to 70° C
(-40 to 158°F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test 68-2-14
UV Test IEC 68-2-5 at 40°C (104°F)
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4
Equivalent: MIL-STD-810 Method 506.5
ANTENNA INFORMATION
Gain 19 dBi
Max VSWR 1.5:1




ROHS Compliant

Weight:Ā 1.5Ā lb
