Ubiquiti Networks PBE-5AC-620 Bridge

Add to Wishlist

Interface Types: Ethernet RJ45

Electrical Interface: Ethernet Gigabit – 1Gbps

On-Board Cache: 128MB

Bays/Ports/Slots: 1

Wattage/VA: 8.5W

Voltage: 24V

1,299.00 د.إ

Add to Wishlist

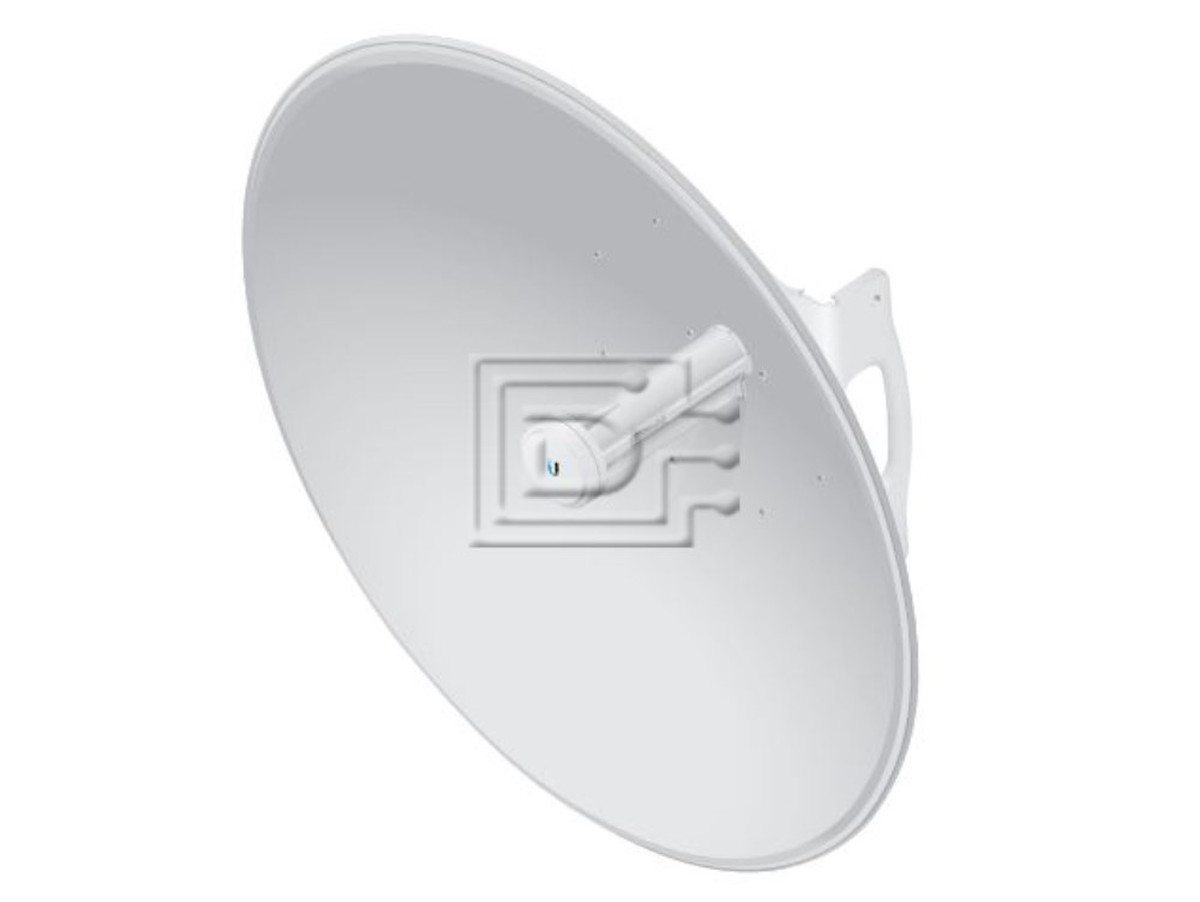

Ubiquiti Networks PBE-5AC-620 PowerBeam ac 5GHz 620mm Dish Reflector Bridge – Brand New

Ubiquiti Networks PBE-5AC-620 PowerBeam ac 5GHz 620mm Dish Reflector Bridge – Brand New

Overview
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam™ ac.

Improved Noise Immunity
The PowerBeam ac directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

Integrated Design
Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses.

Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.

Innovative Mechanical Design

  • Built-in mechanical 10° of downtilt, while the mounting bracket of the PBE-5AC-620 offers ± 15° of tilt.
  • Convenient pole-mounting Only a single wrench is needed to mount the PowerBeam ac on a pole.
  • Easy removal The antenna feed can be detached with the push of a button.

Industrial-Strength Construction

  • Fasteners GEOMET-coated for improved corrosion resistance when compared with zinc-plated fasteners.
  • Dish and brackets Made of galvanized steel that is powder-coated for superior corrosion resistance. The pole bracket design prevents paint from being removed from the metal brackets for improved corrosion resistance.
SKU: PBE-5AC-620 Category:
SYSTEM AND REGULATORY/COMPLIANCE
Model Number PBE-5AC-620
Frequency 5 GHz
Gain 29 dBi
Dish Reflector 620 mm
Processor Specs Atheros MIPS 74Kc
720 MHz
Memory 128 MB DDR2
8 MB Flash
Networking Interface (1) 10/100/1000 Ethernet Port
Wireless Approvals FCC
IC
CE
RoHS Compliance Yes
PHYSICAL/ELECTRICAL/ENVIRONMENTAL
Dimensions 620 x 620 x 386 mm
(24.41 x 24.41 x 15.2 in)
Weight 6.4 kg (14.11 lb)
Power Supply 24V
0.5A Gigabit PoE
Power Method Passive PoE (pairs 4,5+; 7,8 return)
Supported Voltage Range 20 – 26 VDC
Max Power Consumption 8.5 W
Gain 29 dBi
Operating Frequency
Worldwide
USA		 5150 – 5875 MHz
5725 – 5850 MHz
Wind Loading 872 N @ 200 km/h
(196 Ibf @ 125 mph)
Wind Survivability 200 km/h
(125 mph)
LEDs (1) Power
(1) LAN)
(4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
RtMP Mode		 10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: +/- 24 kV
Contact: +/- 24 kV
Operating Temperature -40 to 70° C
(-40 to 158° F)
Operating Humidity 5 to 95% Non-Condensing
Salt Fog Test IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5
ANTENNA INFORMATION
Gain 29 dBi
Max VSWR 1.6:1
Built-in Mechanical Downtilt +15° to -15°



ROHS Compliant

Weight: 15 lb
