Ubiquiti UniFi Switch US-16-XG – switch – 16 ports – managed – rack-mountable J9778A#ABA

Availability:

10 in stock
Add to Wishlist

AED2,199.00

10 in stock

Add to Wishlist

HPE Aruba 2530 48 PoE+ Switch



Overview

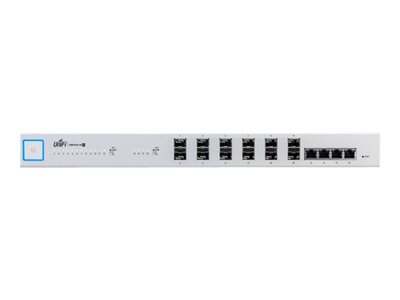

Build and expand your network with the Ubiquiti UniFi US-16-XG. The US-16-XG is a fully managed switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network.

Multi-site management

A single instance of the UniFi controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

High-capacity links

The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features SFP+ ports.

The 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Each 2530 switch has 24 or 48 RJ-45 10/100/1000 ports and four small form-factor pluggable (SFP) slots for fiber connectivity. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the 2530-24G-PoE+ and the HP 2530-48G-PoE+ Switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.

The 2530 Switch Series is easy to use, deploy, and manage via SNMP, CLI, and Web GUI. The series offers flexible wall, table, and rack mounting; quiet operation; and improved power savings, with features such as IEEE 802.3 az (Energy Efficient Ethernet). These switches include a lifetime warranty and all software releases and technical phone support.

SKU: J9778A#ABA Category: Tags: , ,

Specifications

General
Device Type Switch – 16 ports – managed
Enclosure Type Desktop, rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 12 x 10 Gigabit SFP+ + 4 x 10 Gigabit Ethernet
Performance Non-blocking switching throughput: 160 Gbps Switching capacity: 320 Gbps Forwarding performance: 238.1 Mpps
Remote Management Protocol HTTP
Status Indicators Port transmission speed, link/activity
Expansion / Connectivity
Interfaces 12 x 10Gbit LAN SFP+ 4 x 10Gbit LAN RJ-45 1 x management (RS-232) RJ-45
Power
Power Device Internal power supply
Voltage Required AC 120/230 V / DC 16 – 25 V (50/60 Hz)
Power Consumption Operational 36 Watt
Miscellaneous
Rack Mounting Kit Included
Compliant Standards IC, FCC, ETSI 300 019
Dimensions & Weight
Width 17.4 in
Depth 8.7 in
Height 1.7 in
Weight 5.78 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 – 95% (non-condensing)
General
Device Type Switch – 16 ports – managed
Enclosure Type Desktop, rack-mountable 1U
Performance Non-blocking switching throughput: 160 Gbps ¦ Switching capacity: 320 Gbps ¦ Forwarding performance: 238.1 Mpps
Ports 12 x 10 Gigabit SFP+ + 4 x 10 Gigabit Ethernet
Remote Management Protocol HTTP
Status Indicators Port transmission speed, link/activity
Subtype 10 Gigabit Ethernet
Dimensions & Weight
Depth 8.7 in
Height 1.7 in
Weight 5.78 lbs
Width 17.4 in
Environmental Parameters
Humidity Range Operating 5 – 95% (non-condensing)
Max Operating Temperature 104 °F
Min Operating Temperature 23 °F
Expansion / Connectivity
Interfaces 12 x 10Gbit LAN SFP+ ¦ 4 x 10Gbit LAN RJ-45 ¦ 1 x management (RS-232) RJ-45
Miscellaneous
Compliant Standards IC, FCC, ETSI 300 019
Rack Mounting Kit Included
Power
Power Consumption Operational 36 Watt
Power Device Internal power supply
Voltage Required AC 120/230 V / DC 16 – 25 V (50/60 Hz)
