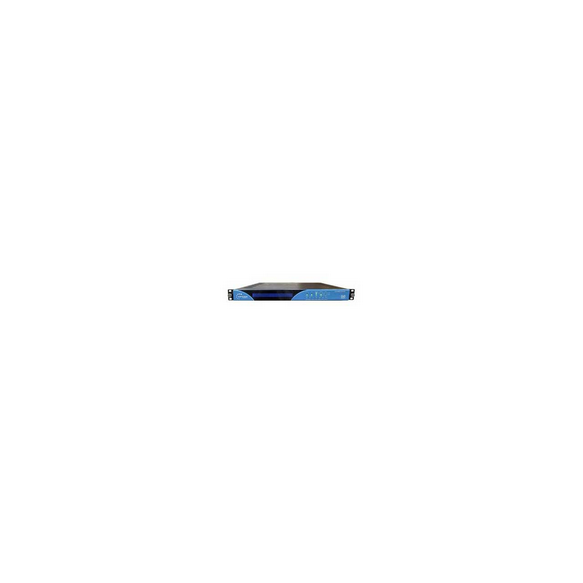

Upcom Technologies UC-IRD-TSX DVB-S/S2 MPEG2/4 SD/HD Transcoder

Add to Wishlist
  • DVB-S/S2, ASI and IP Receiver
  • SD/HD MPEG-2 and H.264/MPEG-4 AVC Decoder
  • Digital Audio Pass Through (AC3 pass through)
  • 2X DVB-CI Slots, BISS-1 and BISS-E Decryption
  • Compatible with: CONAX, CRYPTOWORKS, IRDETO, NDS, MEDIAGUARD, SECA, VIACCESS and more

د.إ13,099.00

Add to Wishlist

Upcom Technologies’ line of high-quality Advanced HD/SD Integrated Receivers, such as the UC-IRD-TSX, has been designed as a feature rich and flexible platform to be used on contribution, distribution and mobile broadcast environment. Most advanced features found as optional on other receivers come as standard on Upcom’s line.

  • Features:

    • DVB-S/S2, ASI and IP Receiver
    • SD/HD MPEG-2 and H.264/MPEG-4 AVC Decoder
    • Digital Audio Pass Through (AC3 pass through)
    • 2X DVB-CI Slots, BISS-1 and BISS-E Decryption
    • Compatible with: CONAX, CRYPTOWORKS, IRDETO, NDS, MEDIAGUARD, SECA, VIACCESS and more
    • TELETEXT VBI, EBU, DVB AND CC support
    • Internal Re-Multiplexer allows program filtering or aggregation
    • SD MPEG-2 output in ASI or Baseband in SDI or Composite
SKU: UC-IRD-TSX Category: Tag:

Specifications:

  • RF Inputs: DVB-S/S2, 950 – 2150MHz, QPSK/8PSK
  • ASI Inputs: DVB-ASI, EN50083-9
  • Video Ouputs: SD-SDI SMPTE 259M, 270 Mb/s (10bit), HD-SDI SMPTE 292M, 1.485 Gbit/s (10bit), Composite (NTSC, PAL, and SECAM)
  • Analog Audio: Balanced XLR 2 pairs of stereo audio outputs
  • Decoding: MPEG-2, MPEG 4/H.264 AVC Part 10, HD/SD, CI & BISS
  • Encoding: MPEG-2 SD
  • Operating Temperature: 32° to 113°F
  • Storage Temperature: -13° to 131°F
  • Shock and Vibration: Equal to mobile van
  • Humidity: 10 to 75%
  • AC Power: 85VAC to 265VAC, 50/60Hz, 20W
  • Dimensions: 19″ W x 2″ H x 13″ D
  • Weight: 9lbs
