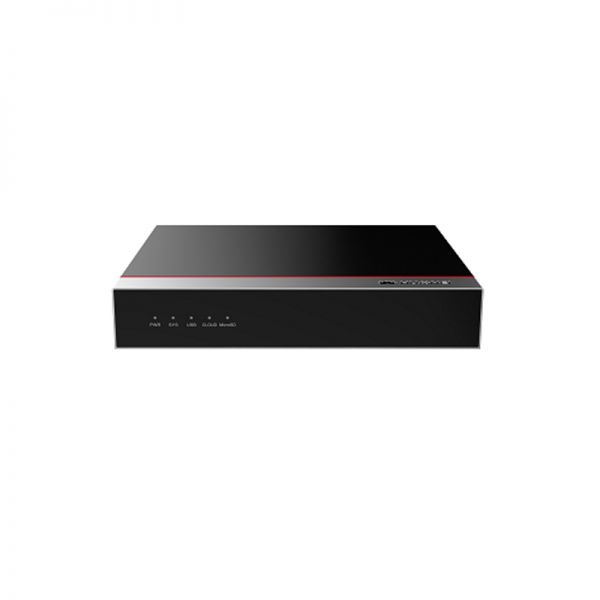

USG6510E-AC

USG6510E-AC Specification

Description

USG6510E AC Host (2*GE (SFP) + 10*GE, with AC/DC Adapter)

Dimensions (H x W x D) mm

43.6 x 250 x 210

Form Factor/Height

Desktop

Fixed Interface

2 x GE (SFP) + 10 x GE

USB Port

1 x USB 3.0

Weight (Full Configuration)

1.5 kg

External Storage

Optional, Micro-SD card supported, 64 GB/128 GB

AC Power Supply

100V to 240V

Power

36 W

Power Supplies

External power adapter

Operating Environment (Temperature/Humidity)

Temperature: 0°C to 45°C;

Humidity: 5% to 95%, non-condensing;

Non-operating Environment

Temperature: -40°C to +70°C

Humidity: 5% to 95%, non-condensing;

Firewall Throughput¹ (1518/512/64-byte, UDP)

1.2/1.2/1.2 Gbit/s

Firewall Latency (64-byte, UDP)

15 µs

FW + SA + IPS Throughput²

0.6 Gbit/s

FW + SA + IPS + Antivirus Throughput²

0.6 Gbit/s

Concurrent Sessions (HTTP1.1)¹

300,000

New Sessions/Second (HTTP1.1)¹

20,000

Maximum IPsec VPN Tunnels (GW to GW)

1,000

Maximum IPsec VPN Tunnels (Client to GW)

1,000

IPsec VPN Throughput¹ (AES-256 + SHA256, 1420-byte)

1 Gbit/s

SSL Inspection Throughput³

200 Mbit/s

Concurrent SSL VPN Users (Default/Maximum)

100/100

Security Policies (Maximum)

1,000

Virtual Firewalls

10

URL Filtering: Categories

More than 130

URL Filtering: URLs

A database of over 120 million URLs in the cloud

Third-Party and Open-Source Ecosystem

Open API for integration with third-party products, providing RESTful and NetConf interfaces

Other third-party management software based on SNMP, SSH, and Syslog

Cooperation with third-party tools, such as Tufin, AlgoSec, and FireMon

Collaboration with anti-APT solution

Centralized Management

Centralized configuration, logging, monitoring, and reporting is performed by Huawei eSight and eLog.

VLANs (Maximum)

4094

VLANIF Interfaces (Maximum)

256

1. The performance is tested under ideal conditions based on RFC2544 and RFC3511. The actual result may vary with deployment environments.

2. The Antivirus, IPS, and SA performance is measured using 100 KB HTTP files.

3. SSL inspection throughput is measured with IPS enabled and HTTPS traffic using TLS v1.2 with AES128-GCM-SHA256.

*SA: indicates service awareness.

Local Storage

Optional, expandable 128 GB Micro-SD card

Integrated Protection

Integrates firewall, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam functions, and provides a global configuration view and integrated policy management.

Application Identification and Control

Identifies over 500 applications with access control granularity for application functions, for example, distinguishing between WeChat text and voice. Combines application identification with intrusion detection, antivirus, and data filtering, improving detection performance and accuracy.

Bandwidth Management

Manages per-user and per-IP bandwidth in addition to identifying service applications. This ensures the network access experience of key services and users. Management and control can be implemented by maximum bandwidth, guaranteed bandwidth, and application-specific PBR. This changes the forwarding priority of application traffic.

Intrusion Prevention and Web Protection

Rapidly obtains the latest threat information for accurate detection and defense against vulnerability-based attacks. The device can defend against web-specific attacks, including SQL injection and XSS attacks.

Cloud Management Mode

Initiates authentication and registration to the cloud management platform to implement plug-and-play and simplify network creation and deployment. Remote service configuration management, device monitoring, and fault management are used to implement cloud-based management of mass devices.

Cloud Application Security Awareness

Controls enterprise cloud applications in a refined and differentiated method. This matches enterprises’ requirements for cloud application management.
