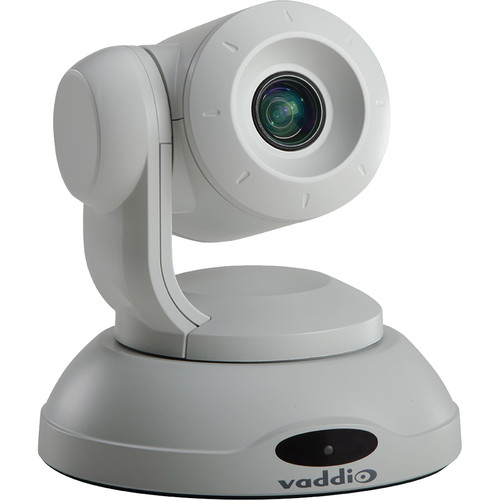

Vaddio ClearSHOT 10 USB 3.0 PTZ Conferencing Camera (White)
AED8,099.00
The white ClearSHOT 10 USB Camera from Vaddio is an HD PTZ conferencing camera with high-quality imaging and color reproduction. With simultaneous and individual USB 3.0 uncompressed and IP (H.264) streaming video outputs, this camera’s Exmor 1/2.8” Full HD CMOS low noise sensor produces vivid and realistic color with razor sharp auto-focus image capture.
The ClearSHOT 10 USB has an Ethernet port for IP (H.264) streaming and a built-in web server, which allows the user to control the camera’s functions via an internal web page from any browser, anywhere over the IP network, while watching the RTSP format video stream with H.264 compression. With a 74° wide horizontal field-of-view and 10x optical zoom, the camera provides flexibility in a variety of applications. These include small to medium-sized conference and huddle rooms, as well as corporate, healthcare, government, and education environments.
| Weight | 1.4 kg |
|---|
Vaddio ClearSHOT 10 Specs
| Image Device | 1/2.8″ Type Exmor CMOS sensor |
| Pan/Tilt | Angle and Speed: ± 170°, up to 90°/sec +90° -30°, up to 90°/sec |
| Lens | F = 3.8mm to 38mm, F1.8 to F3.4, 10x optical zoom, 67.0° wide to 7.6° tele |
| Field of view (FOV) | Horizontal: Super-wide: 11x optical zoom, 74° wide to 7.6° tele, f = 3.8mm to 41.8mm, F1.8 to F3.4 |
| Minimum Working Distance | 10 mm (wide), 1.0 m (tele) |
| Minimum Illumination | Recommended: >100 lux |
| Pixels | 2.14 million (effective) |
| Aperture | 16 steps (via all remote management interfaces) |
| Gain | Auto or manual |
| Backlight Compensation | On or off |
| White Balance | Auto, manual, one-push |
| Focusing System | Auto or manual |
| Noise Reduction | On or off |
| Sync System | Internal |
| Signal to Noise Ratio | Over 50 dB |
| Power | 12 VDC, 3.0 A switching power supply |
| Remote Management | Web interface (Chrome, Firefox, Safari, Internet Explorer 8 through 11), Telnet, RS-232 API (modified VISCA) |
| Outputs | H.264, RTSP USB 3.0, UVC, YUY2 |
| Aspect Ratio | Depends on video resolution |
| Video Resolution | IP: 1080p 30 / 25 / 15 720p 60 / 30 / 25 / 15 704 x 576p 60 / 30 / 25 / 15 720 x 480p 60 / 30 / 25 / 15 640 x 480p 60 / 30 / 25 / 15 360p 60 / 30 / 25 / 15 352 x 288p 60 / 30 / 25 / 15 USB 3.0: USB 2.0 and 3.0: |
| Streaming | IP (H.264), RTSP + USB 3.0 (UVC) IP and USB streams are simultaneous and can be sent at differing resolutions. |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 20 to 80% RH |
| Storage Temperature | 23 to 140°F (-5 to 60°C) |
| Storage Humidity | 20 to 80% RH |
| Dimensions (H x W x D) | 6.3 x 6.1 x 5.5″ (16.0 x 15.5 x 14.0 cm) |
| Weight | 3 lb (1.4 kg) |
| Package Weight | 8.8 lb |
| Box Dimensions (LxWxH) | 13.5 x 12.2 x 11.7″ |
