Vaddio EasyIP 20 – Base Kit – video conferencing kit – TAA Compliant

Add to Wishlist

Quick tech specs

  • Base Kit
  • white

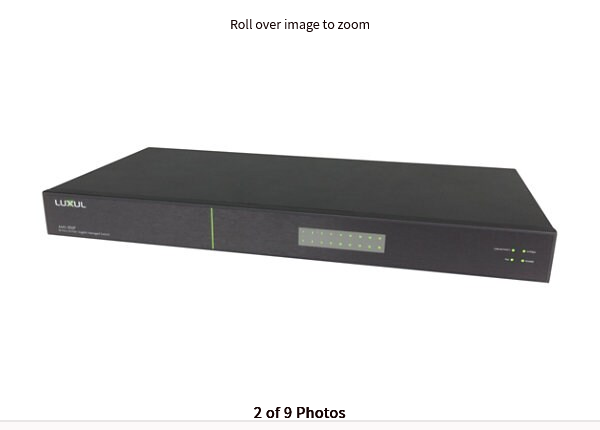

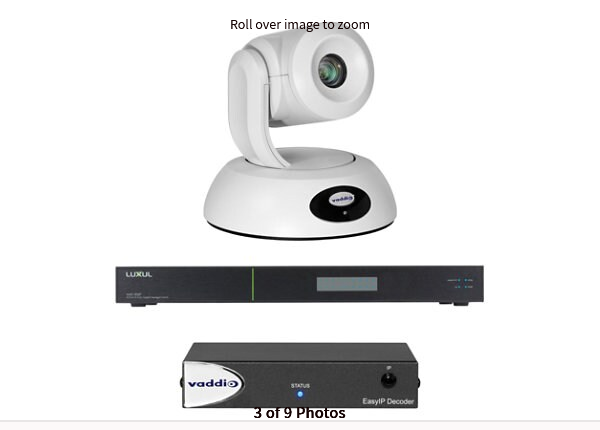

  • video conferencing kit (camera, EasyIP Switch (Luxul AMS-1208p), EasyIP Decoder)
  • TAA Compliant

AED31,999.00

Add to Wishlist
The EasyIP 20 Base Kit is an AV-over-IP professional PTZ camera system in a box. It delivers professional image quality for UC soft clients and simplifies the BYOD (bring your own device) conferencing experience by moving videoconferencing onto the network.

This networked video capturing system allows you to use up to four PTZ cameras in your meeting room, without needing a video switch. It’s a simple AV-over-IP solution for extended and networked video capture and streaming in medium and large spaces.

Category: Tag:
Category Details
Overview
Brand Vaddio
Product Line Vaddio EasyIP
Model 20
Manufacturer VADDIO
Network & Communication
Compliant Standards IEEE 802.1Q
Connectivity Technology Wired
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet
Features 6KV Surge protection, Fanless, PoE+, Quality of Service (QoS), Self-healing network, Static routing, VLAN trunking
Product Type Switch
Connectivity
Connectivity Technology Wireless
Display & Graphics
Touchscreen No
Video
Camera Mechanical Design Pan / tilt / zoom
Digital Video Capture Resolution 1080p
Form Factor External
Interface Type Ethernet, HDMI, RS-232
Video Input Type Digital video camera
Video Modes 1080/25p, 1080/29.97i, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 720/50p, 720/59.94p, 720/60p
Technical Information
Angular Field Of View (Max, Degree) 74
Conferencing System Type Video conferencing kit
Input Device Type Remote control
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Optical Zoom 10
Product Information
Country United States
Features 0.35 – 90°/sec pan speed, 0.35 – 90°/sec tilt speed, 1/2.8 Exmor CMOS image sensor type, -150° / +150° pan, 2.38 megapixels, -30° / +90° tilt, 7.6° field of view (tele), 74° field of view, Invertible, PoE+ support
Kit Base Kit
Packaged Quantity 1
System Kit Content Camera, EasyIP Decoder, EasyIP Switch (Luxul AMS-1208p)
Included Items
Cables 1 x network cable – 10 ft, 1 x network cable – 3 ft, 1 x SuperSpeed USB cable – 6 ft
Included Accessories 4 pin Phoenix connector, Rack mount kit, Wall mount
Dimensions & Weight
Dimensions Details Camera – Width 7.1 in, Depth 6.8 in, Height 6.9 in, Weight 4.9 lbs; Decoder – Width 8.4 in, Depth 6 in, Height 1.7 in, Weight 2.8 lbs; Switch – Width 8.3 in, Depth 17.3 in, Height 1.8 in, Weight 6.2 lbs
Physical Characteristics
Color White
Color Category White
Certifications & Listings
Compliant Standards FCC
ENERGY STAR Certified No
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
