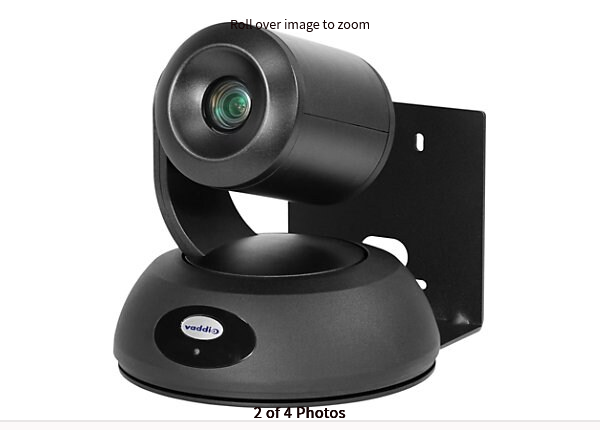

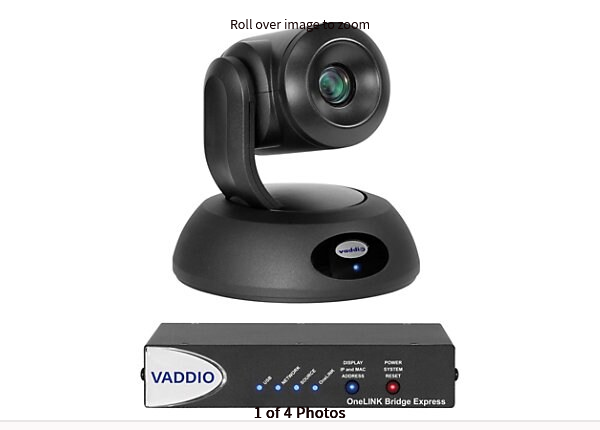

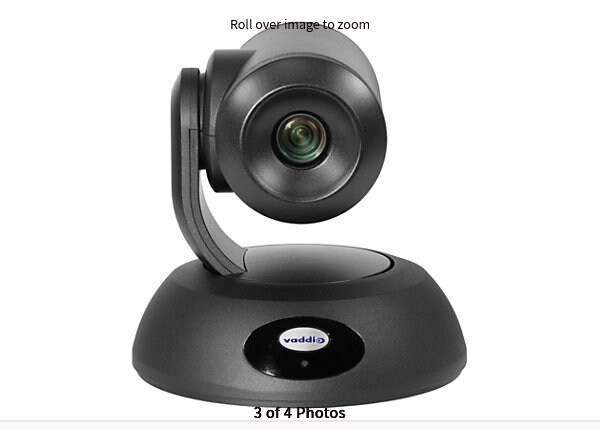

Vaddio RoboSHOT 30E HDBT OneLINK Bridge Express Video Conferencing System – Includes PTZ Camera – Black


Quick tech specs

  • PTZ camera
  • Bridges audio and video for easy soft-client video conferencing
  • HDBaseT, HDMI, and IP streaming
  • Zoom video conferencing camera
  • TAA Compliant
  • 30x zoom
  • 70.2° horizontal field of view
  • Power, video and control over a single Cat-5e cable up to 230 ft.
  • Teams video conferencing

AED32,999.00

The RoboSHOT 30E OneLINK Bridge Express System is a part of the Vaddio Elite Series professional A/V presentation cameras. With 30x zoom and simultaneous HDBaseT and IP (H.264) streaming, the RoboSHOT 30E is recommended for large meeting rooms, lecture halls, and houses of worship. Key Features: 30x Zoom 1/2.5-type Exmor R CMOS sensor 70.2° horizontal field of view Simultaneous HDBaseT, HDMI and IP H.264 streaming Remote IP Management Simple, clutter-free camera extension with HDBaseT technology Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m) Bridges audio and video for easy soft-client conferencing Simultaneous HDMI, USB 3.0, and IP Streaming outputs Configurable audio matrix with AEC Up to 1080p/60 resolution available over uncompressed USB New! Vaddio Deployment Tool Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! — remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time. Download the Deployment Tool > Introducing the RoboSHOT Elite Series — Vaddio†s next generation of professional cameras. Designed with a 1/2.5-type Exmor R CMOS sensor, RoboSHOT streaming cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions. Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook. A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera†s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control. The RoboSHOT 30E cameras have a 20x optical zoom and have an additional 10x of IntelliZoom TM Image Processing. IntelliZoom image processing technology lets you zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. The RoboSHOT 30E camera†s powerful processor compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images. The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship. Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance. The OneLINK Bridge Express system connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Microsoft Teams, Google Meet, and Zoom. Along with the bridging capabilities, the system†s OneLINK Bridge Express for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable. This Package Includes: RoboSHOT 30E HDBT camera (black or white) Thin Profile Wall Mount (black or white) with mounting hardware and installation manual Vaddio IR Remote Commander OneLINK Bridge Express Interface 48V power supply with AC cord set(s) EZCamera RS-232 Control Adapter 4 qty 3-position phoenix-style connectors 6 ft. (1.8m) USB 3.0 cable, type A to B.
SKU: 999-99630-270 Category: Tag:
Category Details
Overview
Brand Vaddio
Product Line Vaddio
Model RoboSHOT Elite Series 30E HDBaseT PTZ Camera System – For Video Conferencing – Black
Manufacturer VADDIO
Network & Communication
Network Interface HDBaseT
Protocols RTMP, RTSP, Telnet
Connectivity
Connectivity Technology Wired
Ports HDBase-T/power – RJ-45, HDMI
Display & Graphics
Image Sensor Size 1/2.5″
Image Sensor Type Exmor R CMOS
Tilt -30 to +90
Touchscreen No
Video
Camera Mechanical Design Pan / tilt / zoom
Digital Zoom 10
Max Frame Rate 60 frames per second
Max Panning Speed (degree/sec) 120
Max Tilting Speed (degree/sec) 120
Panning Range (degree) -150 to +150
Shutter Speed (Max) 1/10000 second
Shutter Speed (Min) 1/1 second
Video Modes 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 1080/60i, 1080/60p, 1080p, 720/50p, 720/59.94p, 720/60p
Video Signals HDMI
Camera
Camera Type Conference camera
Power
Low Voltage Power PoE Plus
Power Device Type Power injector
Technical Information
Angular Field of View (H, Max, Degree) 70.2
Angular Field of View (H, Min, Degree) 4.1
Focus Modes Automatic, Manual
Lens Aperture F/2.0-3.8
Max Focal Length 88.4 millimetre
Max Operating Temperature 104°F
Min Focal Length 4.4 millimetre
Min Focus Distance 3.1 inch
Min Operating Temperature 32°F
Minimum Illumination 1 lux F1.6
Operating Humidity 20 – 80% RH (non-condensing)
Optical Zoom 20
Sensor Size (metric) 10.2 mm (1/2.5″)
Total Pixels 8,570,000 pixels
Video Formats H.264
Video Input Color
Product Information
Bundled With Vaddio OneLINK Bridge Express
Country North America
Features 16 preset positions, 16:9 aspect ratio, 3:2 aspect ratio, 4:3 aspect ratio, Auto gain control, Auto white balance, Backlight Compensation (BLC), Enhanced Wide Dynamic Range, IntelliZoom Image Processing, Invertible, Manual gain control, Manual white balance, Noise Reduction, Silent BLDC direct drive motors, Spotlight Compensation Mode, Tri-Synchronous Motion
Packaged Quantity 1
Included Items
Included Accessories 4 x 3-position phoenix-style connectors, EZCamera RS-232 Control Adapter, Power adapter, Vaddio IR Remote Commander, Wall mount kit
Dimensions & Weight
Height 6.9 inch
Weight 4.85 lbs
Width 7 inch
Depth 6.7 inch
Physical Characteristics
Color Black
Color Category Black
Certifications & Listings
Compliant Standards FCC
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
