Vertiv Geist GU VA7U21A0 PDU

Add to Wishlist

Quick tech specs

  • A device fitted with multiple outputs for the distribution of electric power
  • Combination C13/C19 receptacle type to ensure maximum dependability and optimal performance
  • IEC 60320 C20 plug/connector type for efficient connectivity and feasible power output
  • Single Phase phase PDU for reliable performance with maximum productivity
  • 120 V AC input voltage for better reliance and maximum dependability

AED12,399.00

Add to Wishlist

Know your gear

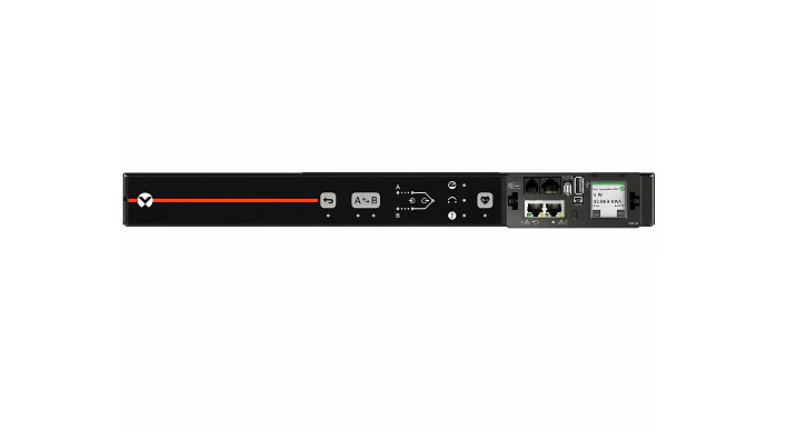

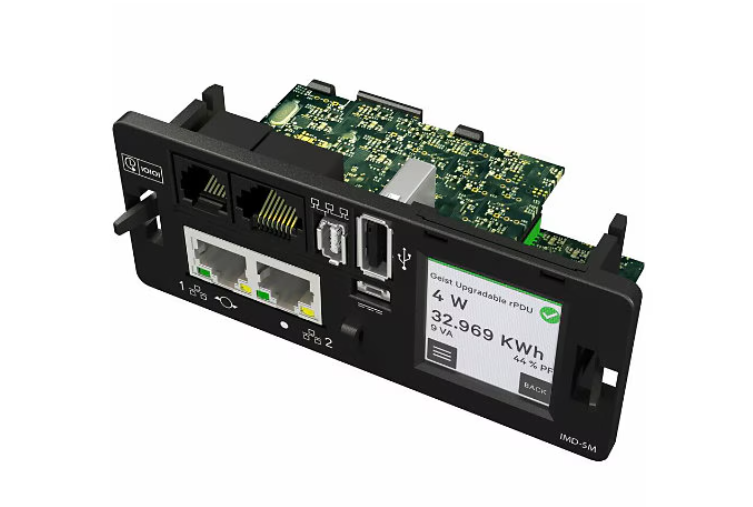

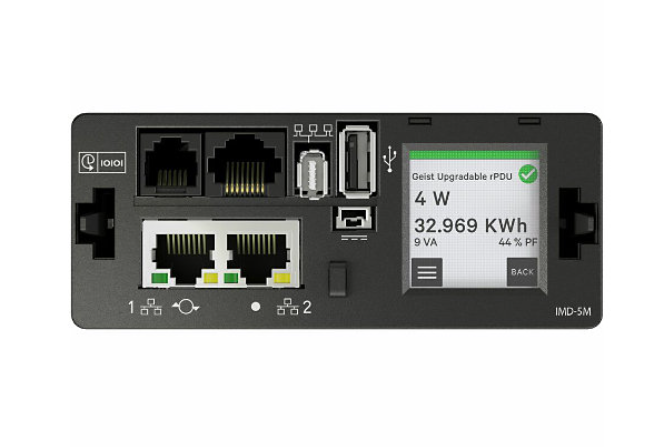

The Vertiv Geist Rack Transfer Switch VA7U21A0 is a 16A/20A, 100V-240V, single phase unit level monitored rPDU with (6) Combination C13/C19 outlets and (2) C20 inlets that provide 1.9kW/3.3kW/3.6kW power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are CE Marked, comply with IEC 60950-1 (CB Certificate Available), RoHS certified, and are individually tested for functionality and reliability.
Category: Tag:
Category Attribute Value
Overview Brand Vertiv Geist
Product Line Geist Upgradeable
Model AUU3E1R5-06CF17-2C20C20A900-D
Series U
Manufacturer Vertiv
Network & Communication Form Factor Rack
Modem Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics Video Interfaces Combination C13/C19
Video Camera Mechanical Design Rack-mountable
Power Input Current 20 ampere
Input Voltage 120 V AC, 240 V AC
Input Voltage Range 100 V AC – 240 V AC
Output Voltage Range 100 V AC – 240 V AC
Plug Type IEC 60320 C20
Power Rating (Watt) 3600 watt
Remote Outlet Switching Yes
Cables Cables 2
Technical Information PDU Type Switched
Phase Single Phase
Product Information Features LCD Display, Touch Screen Display
Mounting Orientation Horizontal
Product Type PDU
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 1U
Weight 15 lb
Width 17 inch
Depth 18 inch
Physical Characteristics Color Family Black
Color Category Black
