Vertiv Geist GU VP7U20A2 PDU

Add to Wishlist

quick tech specs

  • PDU provides power control as remote controlled relay & load monitoring
  • U-Lock IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
  • 1P+N+E (IP44) plug/connector type for efficient connectivity and feasible power output
  • Remotely monitor your equipment without any worries with Switched
  • Single Phase phase PDU provides optimal power output with added usability
  • 230 V AC input voltage for maximum feasibility and added productivity

AED16,199.00

Add to Wishlist

Know your gear

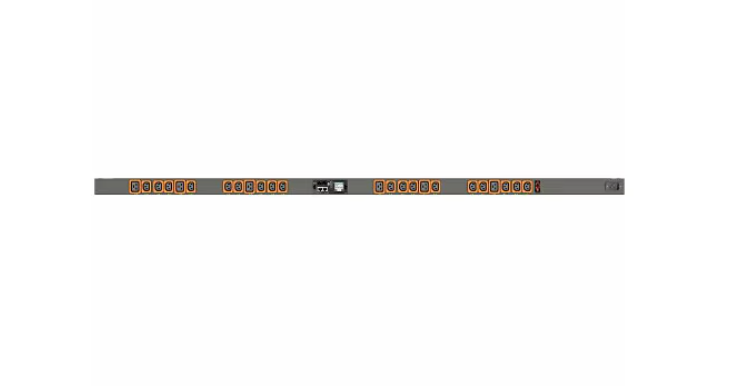

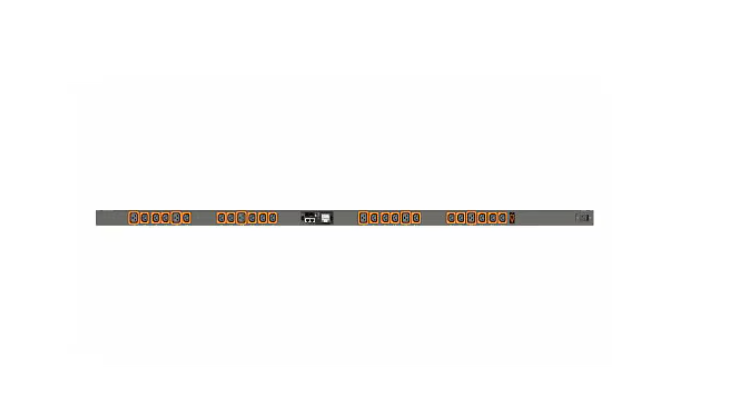

The Vertiv Geist Switched RPDU VP7U20A2 is a 16A/20A, 120V/208V/230V, 0U, vertical rack power distribution unit with input and outlet level power monitoring and outlet level switching. It has (18) IEC C13 and (6) IEC C19 outlets, a C20 inlet, and 1.9kW/3.3kW/3.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next Generation IMD which displays power data via its 128×128 high-visibility touchscreen LCD. The touchscreen interface allows users to provision their rPDU without a need for a network connection. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with secure boot is added in the device to help ensure data and operations are protected. The units are CE Marked and individually tested for functionality and reliability.
SKU: VP7U20A2 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Product Line Geist Upgradeable
Model MUU5MGB0-24PH67-2C20A9A00-S
Series G
Manufacturer Vertiv
Modem
Attribute Value
Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity
Attribute Value
Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics
Attribute Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 20 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 100 V AC – 240 V AC
Load Capacity (Watt) 3600 watt
Output Voltage Range 100 V AC – 240 V AC
Plug Type 1P+N+E (IP44)
Power Rating (Watt) 3600 watt
Remote Outlet Switching No
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
Max Operating Temperature 140
PDU Type Switched
Phase Single Phase
Product Information
Attribute Value
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height (Rack Units) 0U
Length 66.3 inch
Weight 18 lb
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
