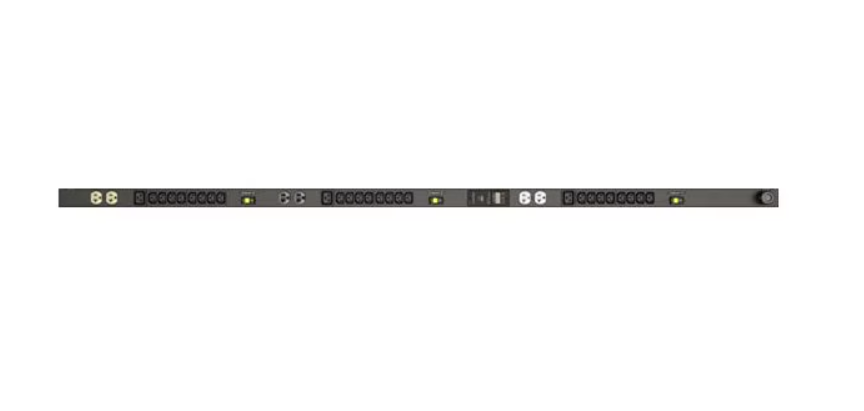

Vertiv Geist MN01D4W1-33M149-3TL21A0A10-S 33-Outlets PDU


Quick tech specs

  • PDU provides power control as remote controlled relay & load monitoring
  • IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
  • NEMA L21-30P plug/connector type for efficient connectivity and feasible power output
  • Metered PDU offers reliable, rack-mount and multi-outlet power source
  • Three Phase phase PDU provides optimal power output with added usability
  • 120 V AC input voltage for better reliance and maximum dependability

AED6,599.00

Know your gear

The I10086 provides real-time power metrics to help prevent overloads and safely optimize load levels. Using Visible Light Communication (VLC) technology, I10086 optically transmits power usage data from its LED display to a handheld device over the Geist Mobile App, presenting comprehensive real-time power usage data down to the phase and circuit levels. With the Geists Upgradeable hot-swap technology, users may easily transform Metered PDUs to Monitored by replacing the Interchangeable Monitoring Device (IMD) module, without causing any interruption.

SKU: I10086 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MN01D4W1-33M149-3TL21A0A10-S
Manufacturer Vertiv
Display & Graphics
Attribute Value
Video Interfaces IEC 60320 C13, IEC 60320 C19, NEMA 5-20R
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 30 ampere
Input Voltage 120 V AC, 230 V AC
Input Voltage Range 120 V AC – 208 V AC
Output Voltage 208 V AC
Plug Type NEMA L21-30P
Power Rating (Watt) 8600 watt
Technical Information
Attribute Value
PDU Type Metered
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Mounting Orientation Vertical
Product Type PDU
Protection Type Overcurrent Protection
Dimensions & Weight
Attribute Value
Height (Rack Units) 0U
Length 72 inch
Width 2 inch
Depth 2 inch
