Vertiv Geist Monitored Rack PDU with Next-Generation IMD| 60A| 208V DELTA| 0U| (30) Combination C13/C19 outlets| 3P+E

Add to Wishlist

Quick tech specs

  • The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

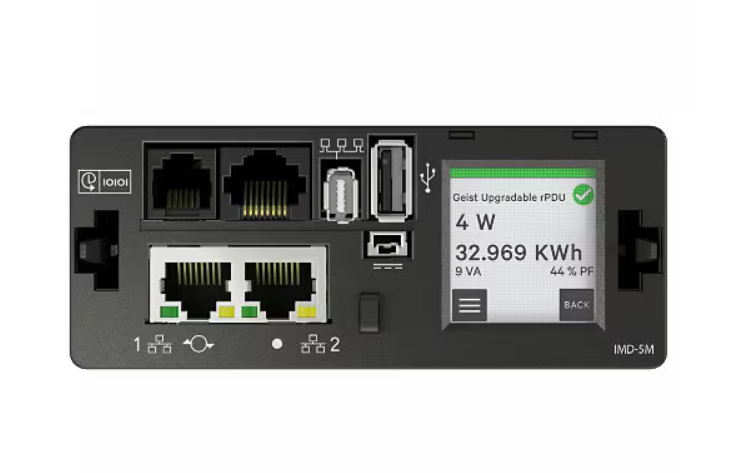

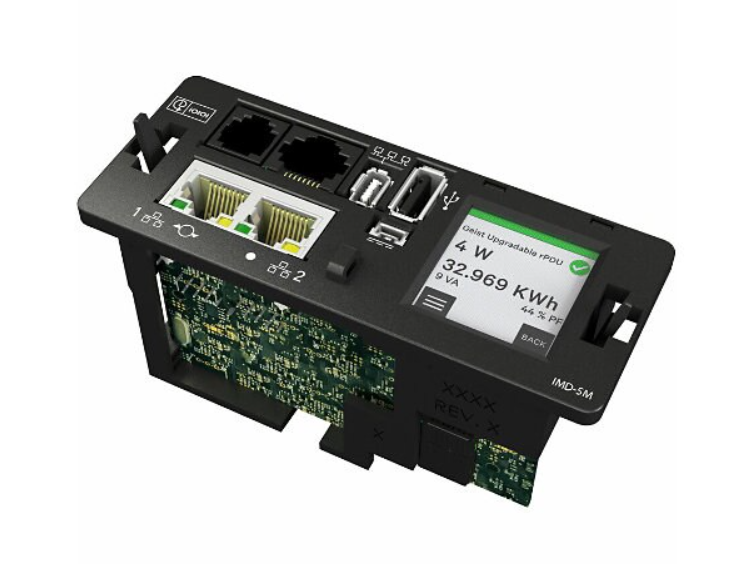

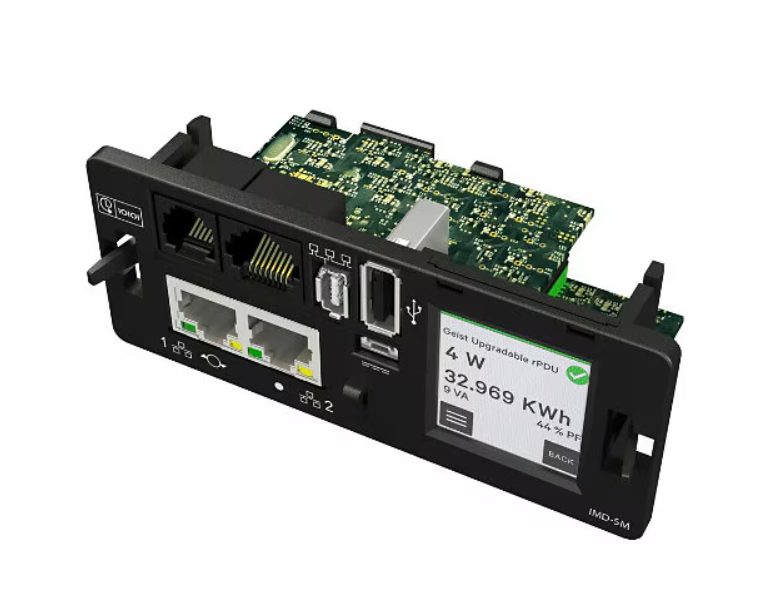

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP4N60AE is a vertical rack mount PDU with 30 Combination C13/C19 outlets and a 3P+E (IP44) plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED16,999.00

Add to Wishlist

Know your gear

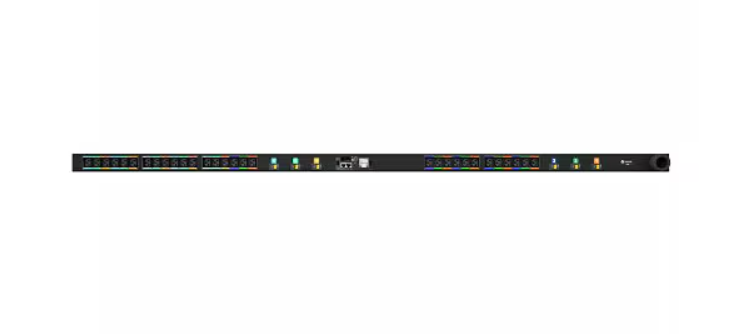

The Vertiv Geist Monitored RPDU VP4N60AE is a 60A, 208V DELTA, 3-phase, upgradeable rack power distribution unit with input power monitoring. It has 30 Combination C13/C19 outlets and a 3P+E (IP44) plug providing 17.2kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP4N60AE Category: Tag:
Category Attribute Value
Overview Brand Vertiv Geist
Product Line Geist Upgradeable
Manufacturer Vertiv
Network & Communication Form Factor Rack
Modem Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics Video Interfaces Combination C13/C19
Video Camera Mechanical Design Rack-mountable
Power Input Current 60 ampere
Input Voltage 208 V AC
Output Voltage 208 V AC
Plug Type 3P+E (IP44)
Power Rating (Watt) 17.20 kilograms per millimetere
Remote Outlet Switching No
Cables Cord Length 10 ft
Technical Information Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Monitored
Phase Three Phase
Product Information Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight Height 70 inch
Height (Rack Units) 0U
Length 3 inch
Weight 32 lb
Width 2.1 inch
Depth 3 inch
