Vertiv Geist Monitored RPDU with Next-Generation IMD | 20A| 120V| 0U Rack| (24) NEMA 5-20R receptacles | NEMA L5-20P

Add to Wishlist

Quick tech specs

  • The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

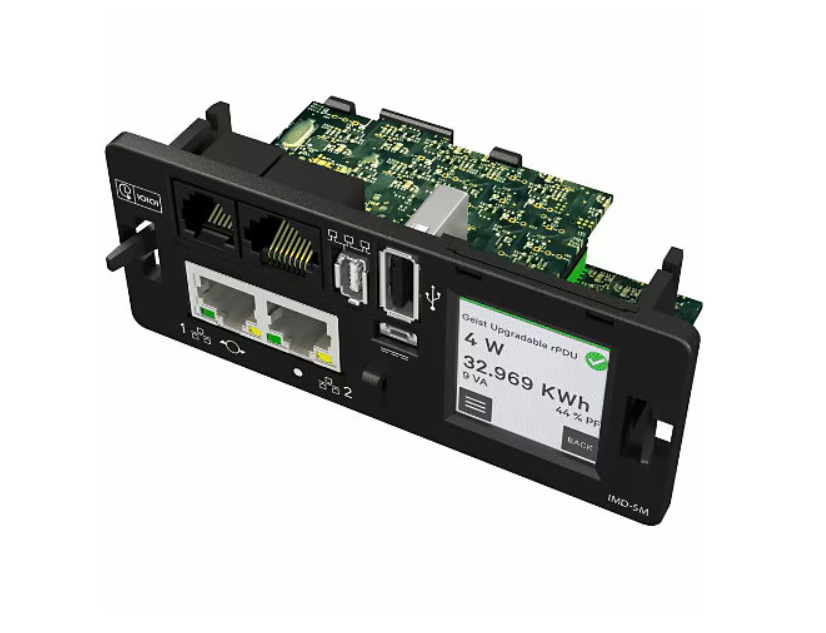

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP4N20A7 is a vertical rack mount PDU with (24) NEMA 5-20R receptacles and an L5-20P plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED6,199.00

Add to Wishlist

Know your gear

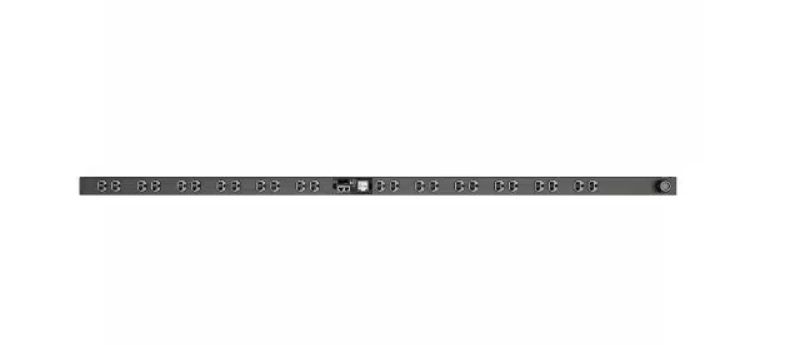

The Vertiv Geist Monitored Rack PDU VP4N20A7 is a 20A, 120V, 0U, vertical rack power distribution unit with input power monitoring. It has (24) NEMA 5-20R receptacles and an L5-20P plug providing 1.9kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP4N20A7 Category: Tag:
Category Attribute Value
Overview Brand Vertiv Geist
Product Line Geist Upgradeable
Series N
Manufacturer Vertiv
Network & Communication Form Factor Rack
Modem Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics Video Interfaces NEMA 5-20R
Video Camera Mechanical Design Rack-mountable
Power Input Current 20 ampere
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Output Voltage Range 100 V AC – 120 V AC
Plug Type NEMA L5-20P
Power Rating (Watt) 1900 watt
Remote Outlet Switching No
Cables Cord Length 10 ft
Technical Information Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Monitored
Product Information Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight Height 66.3 inch
Height (Rack Units) 0U
Length 2 inch
Weight 15 lb
Width 2 inch
Depth 2 inch
