Vertiv Geist Monitored RPDU with Next-Generation IMD| 30A| 208V| 0U Rack| (36) Combination C13/C19 outlets| NEMA L6-30P

Add to Wishlist

Quick tech specs

  • The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

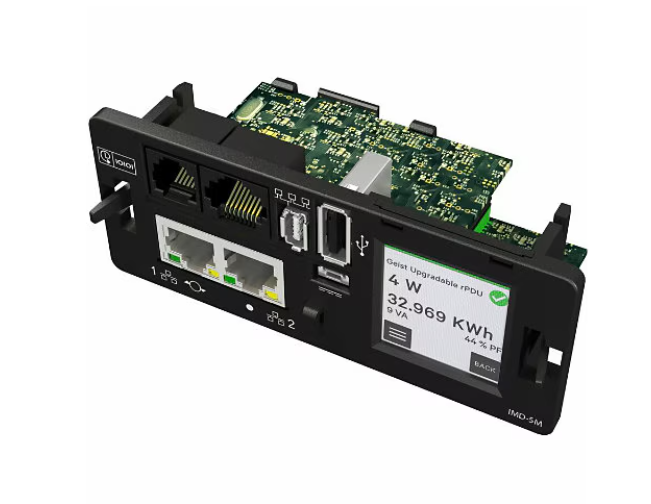

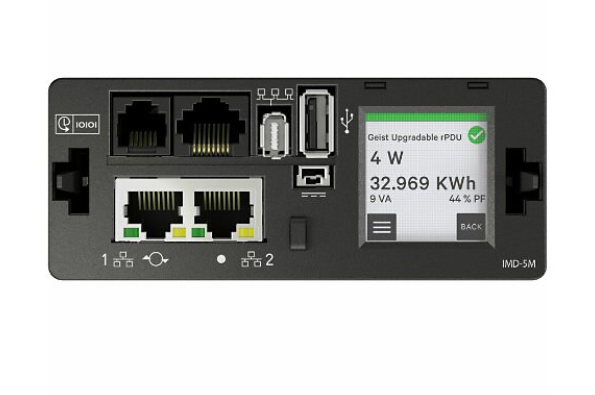

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP4N30AM is a vertical rack mount PDU with 36 Combination C13/C19 outlets and a NEMA L6-30P plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED8,199.00

Add to Wishlist

Know your gear

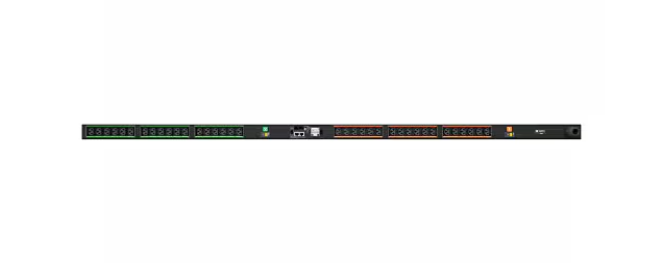

The Vertiv Geist Monitored RPDU VP4N30AM is a 30A, 208V, single-phase upgradeable rack power distribution unit with input power monitoring. It has 36 Combination C13/C19 outlets, and a NEMA L6-30P plug providing 4.9kW of power capacity. The Combination C13/C19 Outlets accommodate C14 and C20 plugs interchangeably. The high retention outlets reduce the risk of downtime from accidental disconnections and are also P-Lock compatible. This unit offers remote power monitoring and environmental sensors to remotely manage the rPDU through any web browser or serial communication. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP4N30AM Category: Tag:
Overview
Specification Details
Brand Vertiv Geist
Product Line Geist Upgradeable
Manufacturer Vertiv
Network & Communication
Specification Details
Form Factor Rack
Modem
Specification Details
Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity
Specification Details
Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics
Specification Details
Video Interfaces Combination C13/C19
Video
Specification Details
Camera Mechanical Design Rack-mountable
Power
Specification Details
Input Current 30 ampere
Input Voltage 208 V AC
Output Voltage 208 V AC
Plug Type NEMA L6-30P
Power Rating (Watt) 4900 watt
Remote Outlet Switching No
Cables
Specification Details
Cord Length 10 ft
Technical Information
Specification Details
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Monitored
Phase Single Phase
Product Information
Specification Details
Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight
Specification Details
Height 66.3 inch
Height (Rack Units) 0U
Length 2 inch
Weight 16 lb
Width 2 inch
Depth 2 inch
