Vertiv Geist Monitored RPDU with Next-Generation IMD| 60A| 208V DELTA| 0U Rack| (12) IEC C13| (12) IEC C19 Receptacles|

Add to Wishlist

Quick tech specs

  • The Monitored RPDU provides access to power usage data so you can see trends and maximize uptime

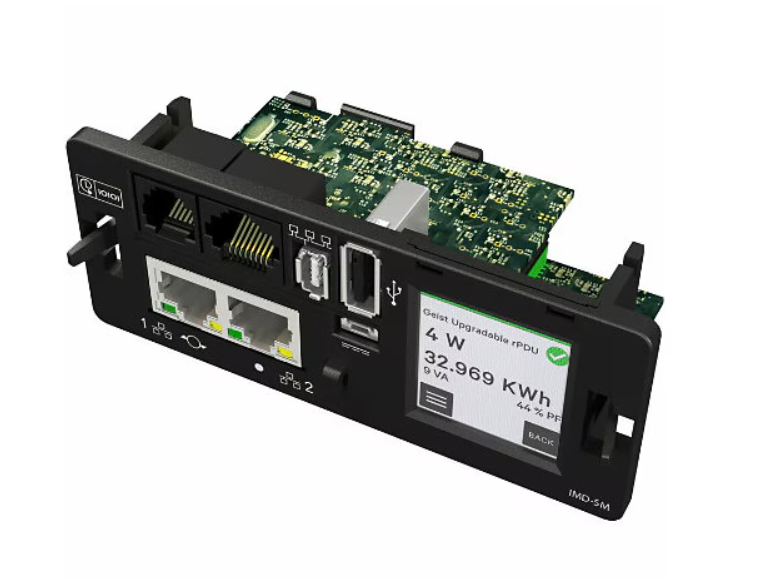

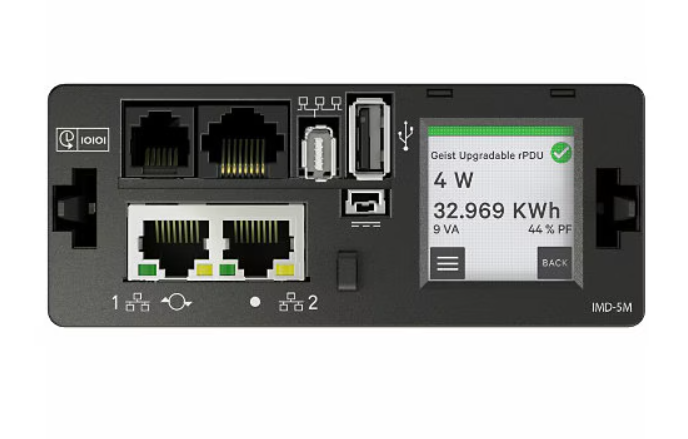

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified

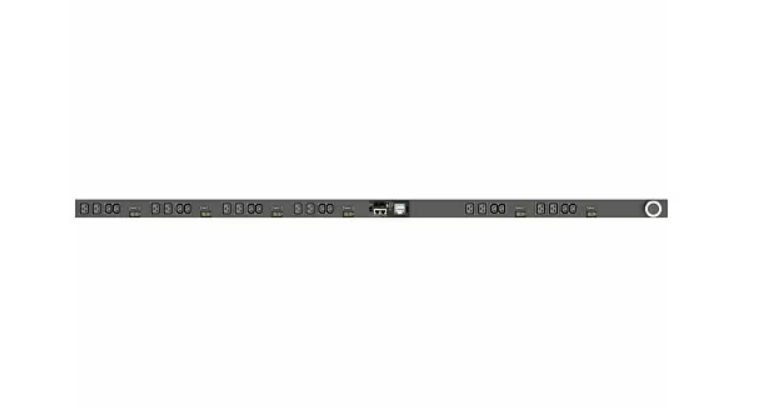

  • VP4N60AF is a vertical rack-mount PDU with (12) IEC C13 and (12) IEC C19 receptacles
  • Helps ensure that data and operations are protected with the enhanced security features

AED13,899.00

Add to Wishlist

Know your gear

The Vertiv Geist Monitored Rack PDU VP4N60AF is a 60A, 208V DELTA, 0U vertical rack power distribution unit with input and per Phase power monitoring. It has (12) IEC C13 and (12) IEC C19 receptacles and a 3P+E (IP44) plug providing 17.2kW of power capacity. This device offers quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP4N60AF Category: Tag:
Overview
Field Value
Brand Vertiv Geist
Product Line Geist Upgradeable
Manufacturer Vertiv
Network & Communication
Field Value
Form Factor Rack
Modem
Field Value
Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity
Field Value
Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics
Field Value
Video Interfaces IEC 60320 C13, IEC 60320 C19
Video
Field Value
Camera Mechanical Design Rack-mountable
Power
Field Value
Input Current 60 ampere
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Output Voltage Range 200 V AC – 240 V AC
Plug Type 3P+E (IP44)
Power Rating 17.20 kilograms per millimetere
Remote Outlet Switching No
Cables
Field Value
Cord Length 10 ft
Technical Information
Field Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Monitored
Phase Three Phase
Product Information
Field Value
Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight
Field Value
Height 72 inch
Height (Rack Units) 0U
Length 3.4 inch
Width 2.3 inch
Depth 3.4 inch
Weight 30 lb
