Vertiv Geist PDU – Variable Power Configuration (UPDU) rPDU 16A – 60A C13 C19 22kW Switched

Add to Wishlist

Quick tech specs

  • Outlet level control to turn on,turn off,or reboot individual outlets to avoid accidental circuit overloads
  • Monitor power consumption at the outlet-level for a detailed view of power distributed to specific equipment
  • Power cycle unresponsive IT equipment or increase runtime of critical equipment by powering down non-critical servers
  • Environmental monitoring with the addition of optional sensors

AED19,799.00

Add to Wishlist

Know your gear

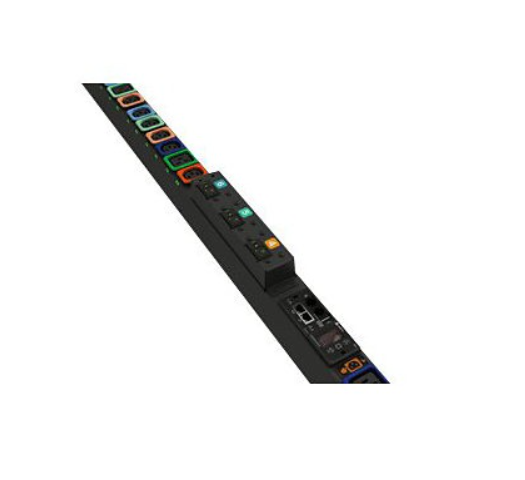

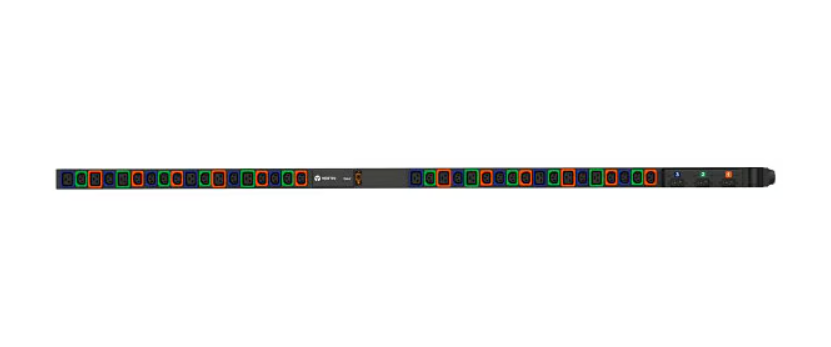

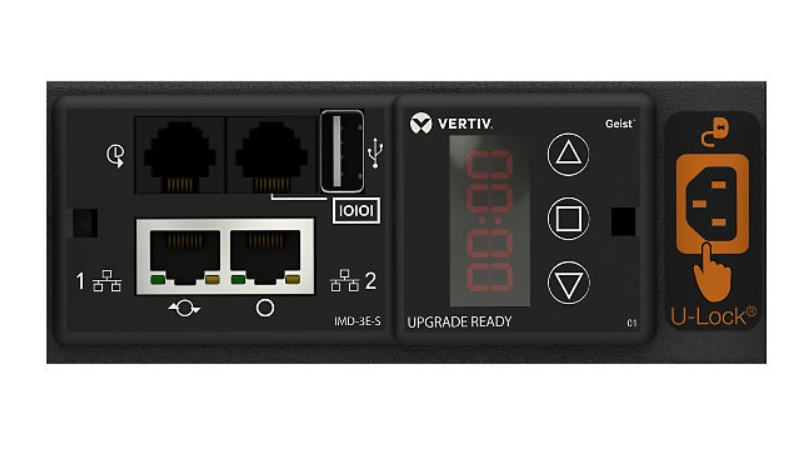

The Vertiv Geist UI30010L Universal Power Distribution Unit (UPDU) is a versatile rack power distribution unit (rPDU) with a universal input and a max power capacity of 22kW. This universal rPDU enables fast and easy installation since it supports common AC power configurations ranging from 16A – 60A and 120V-415V in both single phase and three phase configurations. Just choose the right Facility Side Cable (FSC – sold separately) to define the input power configuration you need to install the UPDU in your network system. This UPDU model has 18 locking C13 and 12 locking C19 receptacles, all equipped with the Vertiv patented U-Lock to lessen accidental disconnections. The hot-swappable Interchangeable Monitoring Device (IMD) on this intelligent rack PDU not only has ports for unit and outlet-level remote power monitoring and environmental monitoring, but it also provides peace of mind that you can seamlessly update the unit’s technology to adapt to your changing business needs.
SKU: UU30010L Category: Tag:
Overview
Field Value
Brand Vertiv Geist
Model DUU3EGW1-30PHB7-2S02A9K00-S-A
Series rPDU
Manufacturer Vertiv
Connectivity
Field Value
Network (RJ-45) Yes
Display & Graphics
Field Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Field Value
Camera Mechanical Design Rack-mountable
Power
Field Value
Input Current 63 ampere
Input Voltage 230 V AC, 415 V AC
Input Voltage Range 230 V AC – 415 V AC
Plug Type Universal Input
Power Rating (Watt) 22 kilograms per millimetere
Remote Outlet Switching Yes
Technical Information
Field Value
Locking Receptacles IEC 60320 C13, IEC 60320 C19
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Switched
Phase Three Phase
Product Information
Field Value
Country of Origin United States
Mounting Orientation Vertical
Product Type PDU
Protection Type Double Pole, Overcurrent Protection
Dimensions & Weight
Field Value
Height 72 inch
Height (Rack Units) 0U
Length 2.6 inch
Width 2 inch
Depth 2.6 inch
Weight 25 lb
