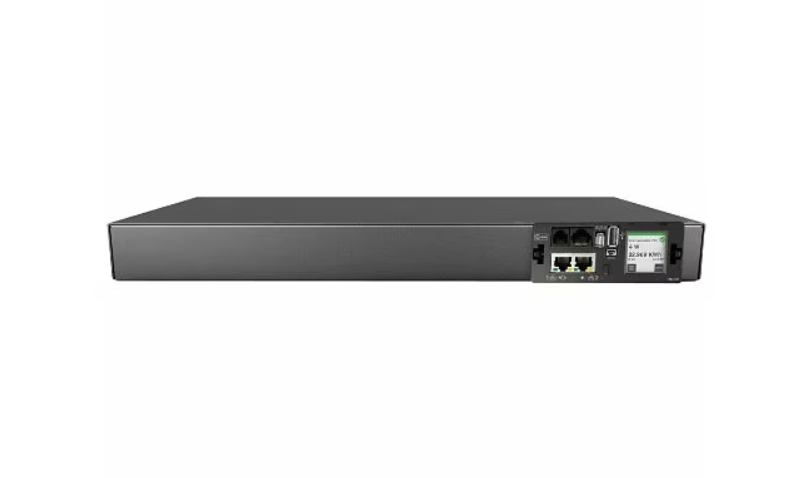

Vertiv Geist rPDU MN05M1R0-10D203-2ST5A0H10-S 10-Outlets PDU

Add to Wishlist

Quick tech specs

  • PDU distributes AC power to multiple servers and balances the load on the servers
  • NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
  • 120 V AC input voltage for better reliance and maximum dependability
  • With monitored PDU, you can remotely monitor single-or three-phase voltage easily
  • NEMA 5-20P plug/connector type for efficient connectivity and feasible power output
  • 120 V AC output voltage for better reliance and maximum usability

AED4,899.00

Add to Wishlist

Know your gear

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MN05M1R0-10D203-2ST5A0H10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces NEMA 5-20R
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 20 ampere
Input Frequency 60 hertz
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Load Capacity (Watt) 1900 watt
Output Voltage 120 V AC
Plug Type NEMA 5-20P
Power Rating (Watt) 1900 watt
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140°F
PDU Type Monitored
Product Information
Attribute Value
Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Horizontal
Product Type PDU
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height 1.7 inch
Height (Rack Units) 1U
Width 17 inch
Depth 8.5 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
