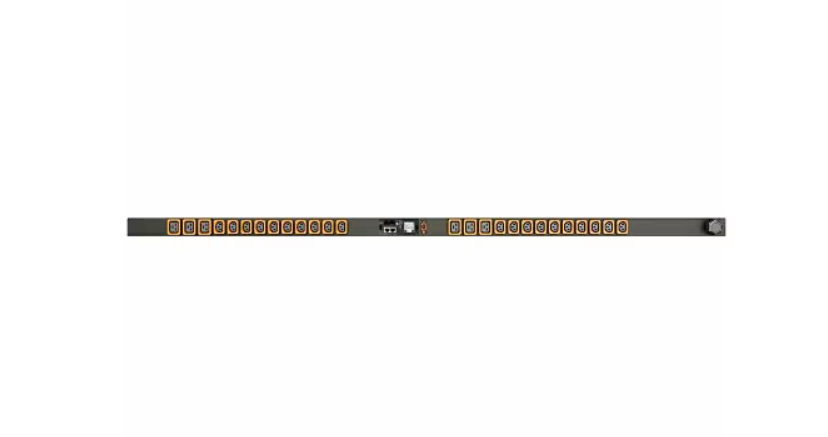

Vertiv Geist rPDU MN05M4B0-26PJ68-2TL6A0A10-S 30-Outlets PDU


Quick tech specs

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Fault- Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and e
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate- related equipment failure and system downtime.

AED7,099.00

Know your gear

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
SKU: VP4N20A5 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MN05M4B0-26PJ68-2TL6A0A10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 20 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Load Capacity (Watt) 3300 watt
Output Voltage 208 V AC
Plug Type NEMA L6-20P
Power Rating (Watt) 3300 watt
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140 degree Fahrenheit
PDU Type Monitored
Product Information
Attribute Value
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Usage IT Equipment
Dimensions & Weight
Attribute Value
Length 66.3 inch
Width 2 inch
Depth 2 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
