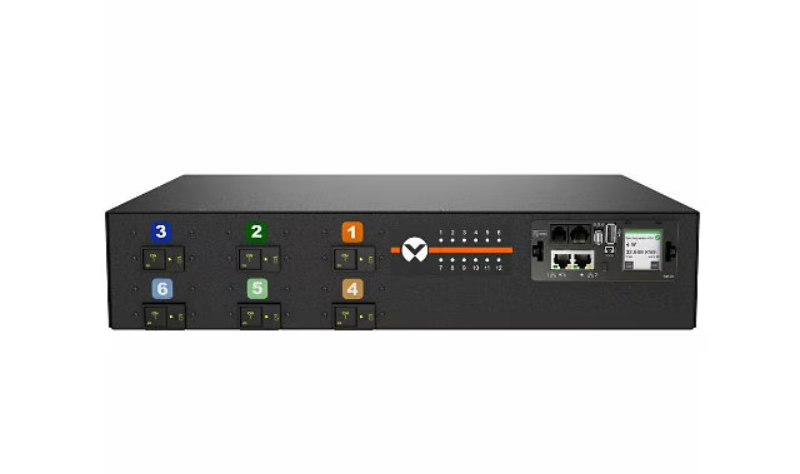

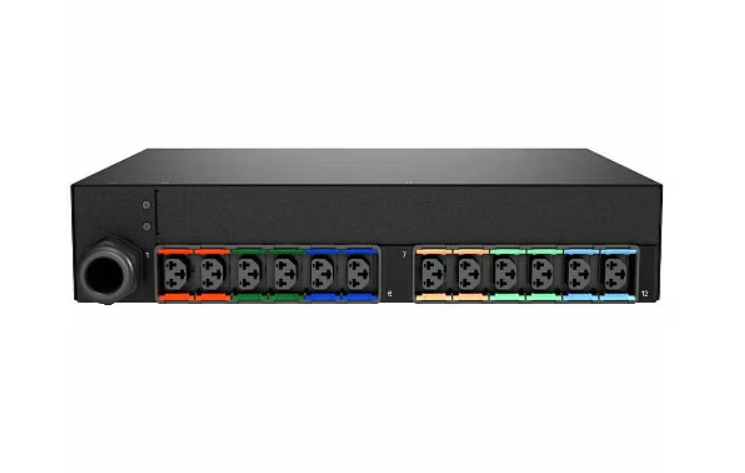

Vertiv Geist rPDU MNR5MDR6-12CF18-6PS15B0H10-S 12-Outlets PDU

Add to Wishlist

Quick tech specs

  • PDU distributes AC power to multiple servers and balances the load on the servers
  • Combination C13/C19 receptacle type to ensure maximum dependability and optimal performance
  • 3P+E (IP44) plug/connector type for efficient connectivity and feasible power output
  • Before critical input source become overloaded always be warned with monitored PDUs
  • Three Phase phase PDU for reliable performance with maximum productivity
  • 230 V AC input voltage for better reliance and maximum dependability

AED17,499.00

Add to Wishlist

Know your gear

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MNR5MDR6-12CF18-6PS15B0H10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces Combination C13/C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable, Recess-mountable
Power
Attribute Value
Input Current 60 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Load Capacity (Watt) 17.20 kilograms per millimetere
Output Voltage 208 V AC
Plug Type 3P+E (IP44)
Power Rating (Watt) 17.20 kilograms per millimetere
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140
PDU Type Monitored
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Horizontal
Product Type PDU
Protection Type Double Pole, Overcurrent Protection
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height 3.4 inch
Height (Rack Units) 2U
Width 17 inch
Depth 12 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
