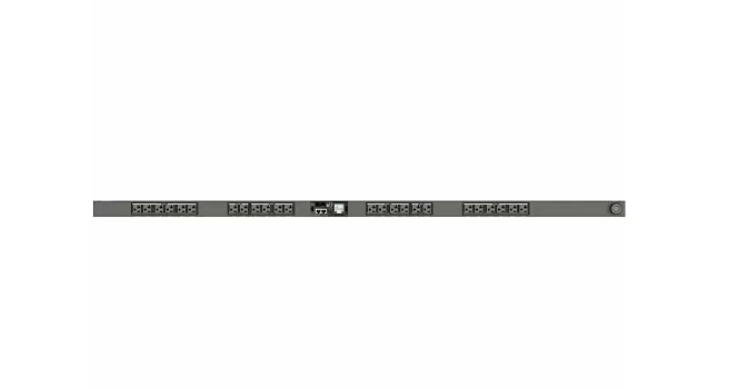

Vertiv Geist rPDU MNR5MGB0-24S203-2TL21A0A10-S 24-Outlets PDU

Add to Wishlist

Quick tech specs

  • PDU allows power to be more efficiently distributed and controlled
  • NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
  • NEMA L21-20P plug/connector type for efficient connectivity and feasible power output
  • Before critical input source become overloaded always be warned with monitored PDUs
  • Three Phase phase PDU provides dependable power output with maximum efficiency
  • 120 V AC input voltage for better reliance and maximum dependability

AED13,499.00

Add to Wishlist

Know your gear

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
SKU: VP6N20A2 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MNR5MGB0-24S203-2TL21A0A10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces NEMA 5-20R
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 20 ampere
Input Frequency 60 hertz
Input Voltage 120 V AC, 230 V AC
Input Voltage Range 100 V AC – 120 V AC, 200 V AC – 240 V AC
Load Capacity (Watt) 5700 watt
Output Voltage 120 V AC
Plug Type NEMA L21-20P
Power Rating (Watt) 5700 watt
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140
PDU Type Monitored
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height (Rack Units) 0U
Length 66.3 inch
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
