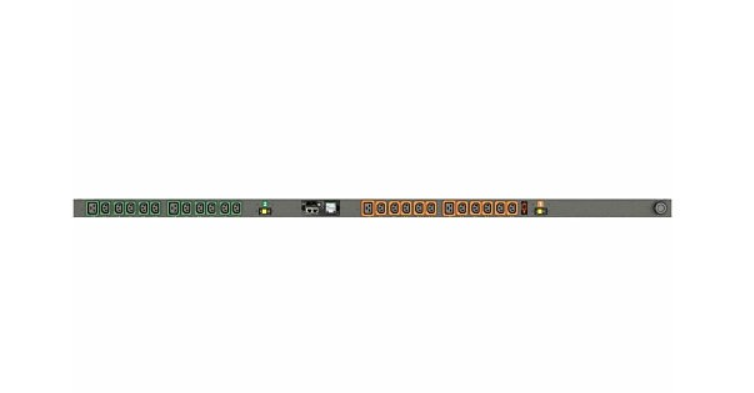

Vertiv Geist rPDU MNR5MGB1-24PJ48-3TL6A0A10-S 24-Outlets PDU

Add to Wishlist

Quick tech specs

  • Provide circuit protection and easy configuration for trouble-free access
  • U-Lock IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • 230 V AC input voltage for maximum feasibility and added productivity
  • Before critical input source become overloaded always be warned with monitored PDUs
  • NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
  • 208 V AC output voltage for maximum dependability and added productivity

AED13,499.00

Add to Wishlist

Know your gear

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
SKU: VP6N30AU Category: Tag:
Overview
Field Value
Brand Vertiv Geist
Model MNR5MGB1-24PJ48-3TL6A0A10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Field Value
Network (RJ-45) Yes
Display & Graphics
Field Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Field Value
Camera Mechanical Design Rack-mountable
Power
Field Value
Input Current 30 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Load Capacity (Watt) 4900 watt
Output Voltage 208 V AC
Plug Type NEMA L6-30P
Power Rating (Watt) 4900 watt
Cables
Field Value
Cord Length 10 ft
Technical Information
Field Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140°F
PDU Type Monitored
Product Information
Field Value
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Protection Type Double Pole, Overcurrent Protection
Usage IT Equipment
Dimensions & Weight
Field Value
Height (Rack Units) 0U
Length 66.3 inch
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Field Value
Color Family Black
Color Category Black Powder Coat
