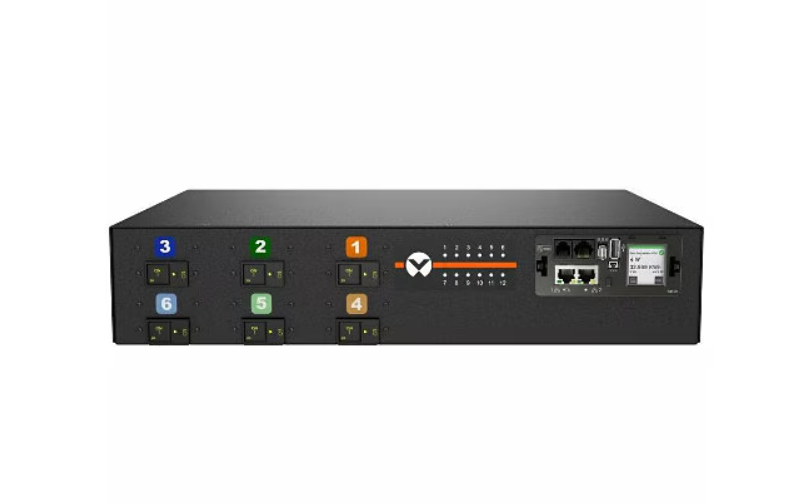

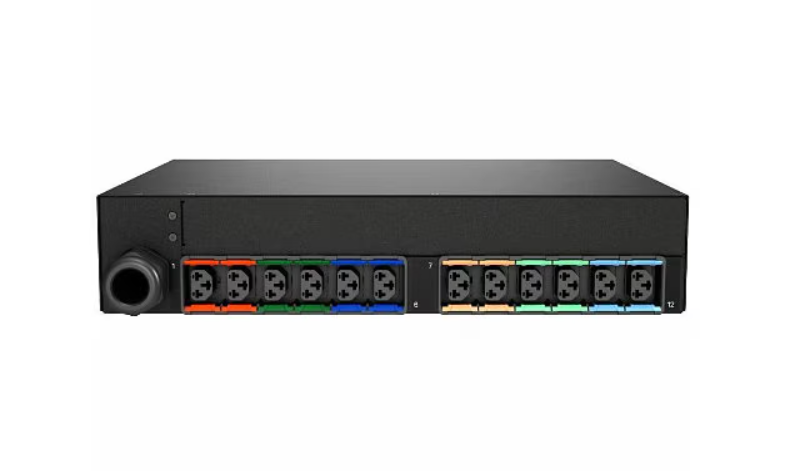

Vertiv Geist rPDU MNS5MDR6-12CF18-5CS15A0H10-S 12-Outlets PDU

Add to Wishlist

Quick tech specs

  • Electric power fitted to racks of computers and networking equipment within a data center
  • Combination C13/C19 receptacle type to ensure maximum dependability and optimal performance
  • 3P+E CA plug/connector type for efficient connectivity and feasible power output
  • Three Phase phase PDU provides optimal power output with added usability
  • 230 V AC input voltage for better reliance and maximum dependability

AED15,199.00

Add to Wishlist

Know your gear

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MNS5MDR6-12CF18-5CS15A0H10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces Combination C13/C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 50 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Load Capacity (Watt) 14.40 kilograms per millimetre (please verify unit)
Output Voltage 208 V AC
Plug Type 3P+E CA
Power Rating (Watt) 14.40 kilograms per millimetre (please verify unit)
Remote Outlet Switching Yes
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140°F
PDU Type Switched
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Horizontal
Product Type PDU
Protection Type Double Pole, Overcurrent Protection
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height 3.4 inch
Height (Rack Units) 2U
Width 17 inch
Depth 12 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
