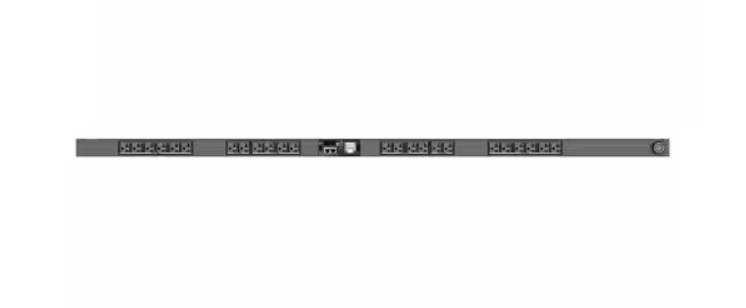

Vertiv Geist rPDU MNU5MGB0-24S203-2ST5A0A10-S 24-Outlets PDU


Quick tech specs

  • PDU provides active metering enabling energy optimization and circuit protection
  • NEMA 5-20R receptacle type to ensure maximum usability and reliable power output
  • 120 V AC input voltage for maximum feasibility and added productivity
  • NEMA 5-20P plug/connector type for reliable, productive connectivity and optimal power output
  • 120 V AC output voltage for maximum dependability and added productivity

AED12,499.00

Know your gear

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.

Benefits

  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
SKU: VP7N20A3 Category: Tag:
Category Attribute Value
Overview Brand Vertiv Geist
Model MNU5MGB0-24S203-2ST5A0A10-S
Series rPDU
Manufacturer Vertiv
Connectivity Network (RJ-45) Yes
Display & Graphics Video Interfaces NEMA 5-20R
Video Camera Mechanical Design Rack-mountable
Power Input Current 20 ampere
Input Frequency 60 hertz
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Load Capacity (Watt) 1900 watt
Output Voltage 120 V AC
Plug Type NEMA 5-20P
Power Rating (Watt) 1900 watt
Remote Outlet Switching Yes
Cables Cord Length 10 ft
Technical Information Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140 degree Fahrenheit
PDU Type Switched
Product Information Country of Origin United States
Features LED Display
Mounting Orientation Vertical
Product Type PDU
Usage IT Equipment
Dimensions & Weight Height (Rack Units) 0U
Length 66.3 inch
Width 2 inch
Depth 2.6 inch
Physical Characteristics Color Family Black
Color Category Black Powder Coat
