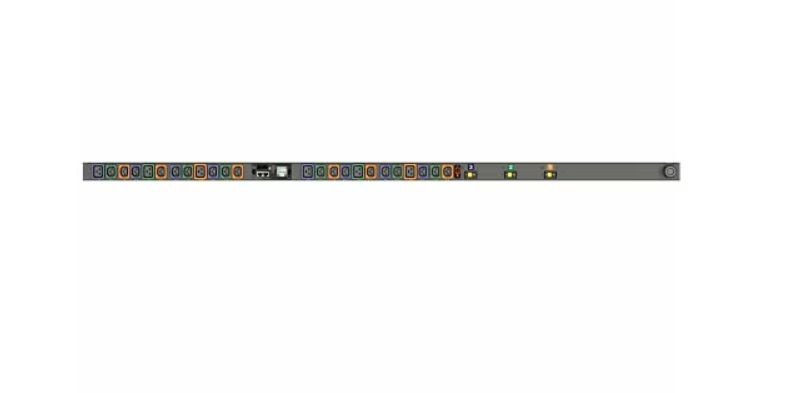

Vertiv Geist rPDU MNU5MGB1-24PH68-3TL21A0A10-S-A 24-Outlets PDU


Quick tech specs

  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
  • Three Phase phase PDU provides optimal power output with added usability
  • 230 V AC input voltage for optimal performance with maximum usability
  • U-Lock IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
  • NEMA L21-30P plug/connector type for reliable, productive connectivity and optimal power output

AED16,999.00

Know your gear

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.

Benefits

  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
SKU: VP7N30A0 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MNU5MGB1-24PH68-3TL21A0A10-S-A
Series rPDU
Manufacturer Vertiv
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 30 ampere
Input Frequency 60 hertz
Input Voltage 120 V AC, 230 V AC
Input Voltage Range 100 V AC – 120 V AC, 200 V AC – 240 V AC
Load Capacity (Watt) 8600 watt
Output Voltage 208 V AC
Plug Type NEMA L21-30P
Power Rating (Watt) 8600 watt
Remote Outlet Switching Yes
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140°F
PDU Type Switched
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Features LED Display
Mounting Orientation Vertical
Product Type PDU
Protection Type Double Pole, Overcurrent Protection
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height (Rack Units) 0U
Length 66.3 inch
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
