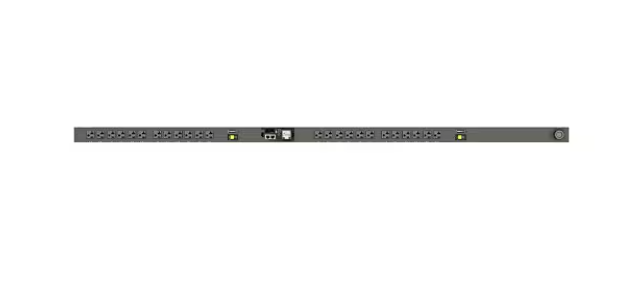

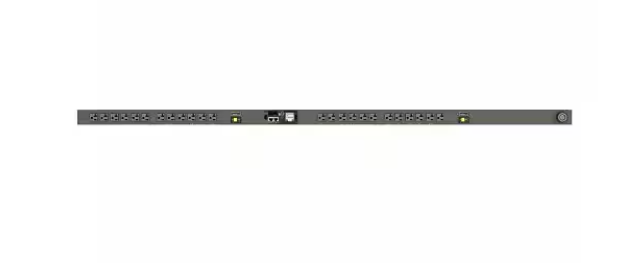

Vertiv Geist rPDU MNU5MGB1-24S203-3TL5A0A10-S 24-Outlets PDU


Quick tech specs

  • NEMA L5-30P plug/connector type for efficient connectivity and feasible power output
  • 120 V AC output voltage for optimal performance with maximum feasibility
  • NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
  • 120 V AC input voltage for better reliance and maximum dependability

AED13,699.00

Know your gear

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.

Benefits

  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
SKU: VP7N30A5 Category: Tag:
Overview
Specification Details
Brand Vertiv Geist
Model MNU5MGB1-24S203-3TL5A0A10-S
Series rPDU
Manufacturer Vertiv
Connectivity
Specification Details
Network (RJ-45) Yes
Display & Graphics
Specification Details
Video Interfaces NEMA 5-20R
Video
Specification Details
Camera Mechanical Design Rack-mountable
Power
Specification Details
Input Current 30 ampere
Input Frequency 60 hertz
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Load Capacity (Watt) 2800 watt
Output Voltage 120 V AC
Plug Type NEMA L5-30P
Power Rating (Watt) 2800 watt
Remote Outlet Switching Yes
Cables
Specification Details
Cord Length 10 ft
Technical Information
Specification Details
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140 degree Fahrenheit
PDU Type Switched
Product Information
Specification Details
Country of Origin United States
Features LED Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Protection Type Overcurrent Protection, Single Pole
Usage IT Equipment
Dimensions & Weight
Specification Details
Height (Rack Units) 0U
Length 66.3 inch
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Specification Details
Color Family Black
Color Category Black Powder Coat
