Vertiv Geist Switched Rack PDU with Next Generation IMD – 0U| 30A| 208V| (24) Combination C13/C19 Receptacles| NEMA


Quick tech specs

  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment

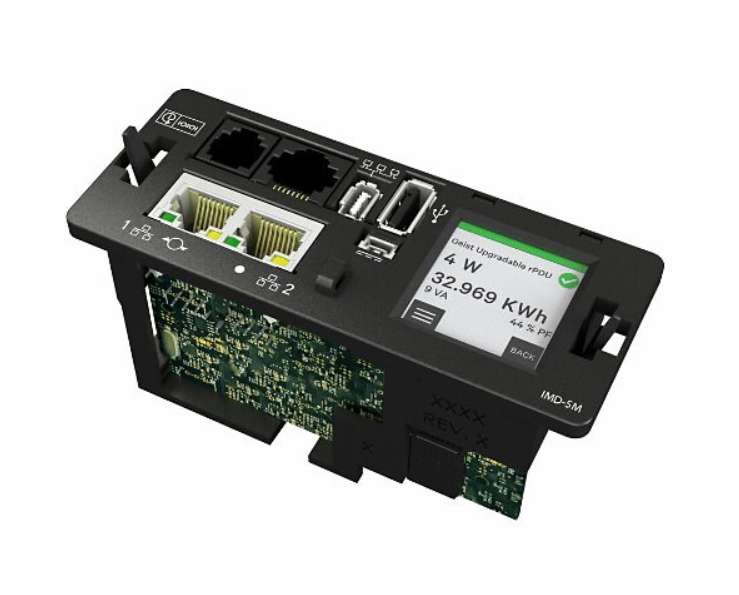

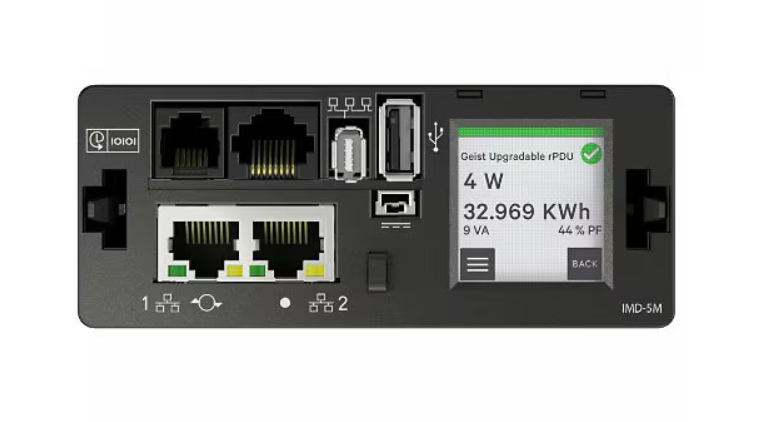

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP5N30AP is a 30A, 208V, rack PDU with (24) Combination C13/C19 receptacles and a NEMA L6-30P plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED12,199.00

Know your gear

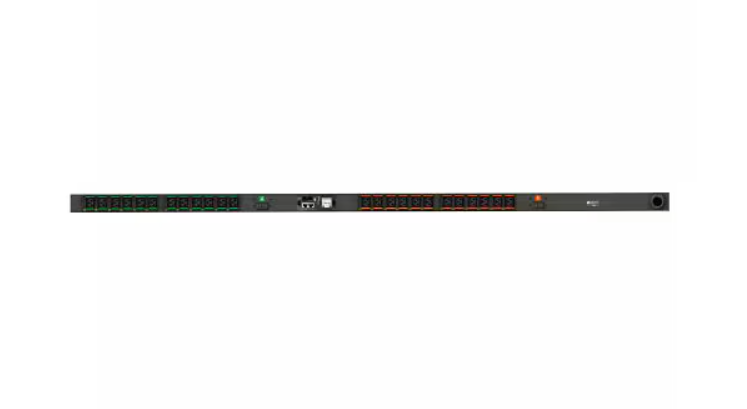

The Vertiv Geist Switched RPDU VP5N30AP is a 30A, 208V, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (24) Combination C13/C19 receptacles and a NEMA L6-30P plug providing 4.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP5N30AP Category: Tag:

Overview

Attribute Details
Brand Vertiv Geist
Product Line
Geist Upgradeable
Series N
Manufacturer Vertiv
Network & Communication
Attribute Details
Form Factor Rack
Connectivity
Attribute Details
Network (RJ-45) Yes
Display & Graphics
Attribute Details
Video Interfaces Combination C13/C19
Video
Attribute Details
Camera Mechanical Design Rack-mountable
Power
Attribute Details
Input Current 30 ampere
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Output Voltage Range 200 V AC – 240 V AC
Plug Type NEMA L6-30P
Power Rating (Watt) 4900 watt
Remote Outlet Switching Yes
Cables
Attribute Details
Cord Length 10 ft
Technical Information
Attribute Details
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Switched
Phase Single Phase
Product Information
Attribute Details
Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Protection Type Overcurrent Protection
Dimensions & Weight
Attribute Details
Height 66.3 inch
Height (Rack Units) 0U
Weight 20 lb
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Details
Color Family Black
Color Category Black
