Vertiv Geist Switched Rack PDU with Next Generation IMD – 0U| 30A| 208V DELTA| (30) U-Lock C13 and (6) U-Lock C19|

Add to Wishlist

quick tech specs

  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment

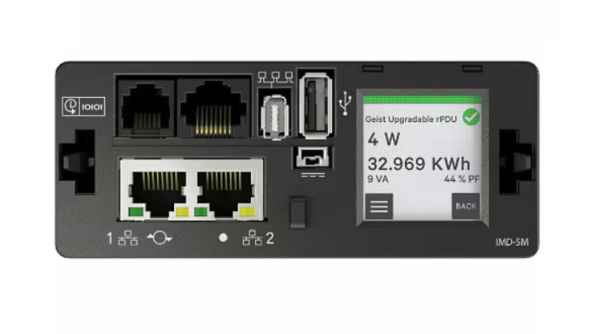

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP7N30AM is a rack mount PDU with (30) U-Lock C13 and (6) U-Lock C19 receptacles and an L15-30P plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED20,299.00

Add to Wishlist

Know your gear

The Vertiv Geist Switched RPDU VP7N30AM is a 30A, 208V DELTA, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (30) U-Lock C13 and (6) U-Lock C19 receptacles and an L15-30P plug providing 8.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP7N30AM Category: Tag:
Category Attribute Value
Overview Brand Vertiv Geist
Product Line Geist Upgradeable
Series N
Manufacturer Vertiv
Network & Communication Form Factor Rack
Connectivity Network (RJ-45) Yes
Display & Graphics Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video Camera Mechanical Design Rack-mountable
Power Input Current 30 ampere
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Output Voltage Range 200 V AC – 240 V AC
Plug Type NEMA L15-30P
Power Rating (Watt) 8600 watt
Remote Outlet Switching Yes
Cables Cord Length 10 ft
Technical Information Locking Receptacles Ulock
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Switched Outlet Monitored
Phase Three Phase
Product Information Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight Height 72 inch
Height (Rack Units) 0U
Weight 22 lb
Width 2 inch
Depth 2.6 inch
Physical Characteristics Color Family Black
Color Category Black
