Vertiv Geist Switched RPDU with Next Generation IMD – 0U| 30A| 120V/208V WYE| 8.6kW| NEMA L21-30P| 18 U-Lock C13| 6

Add to Wishlist

Quick tech specs

  • Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment

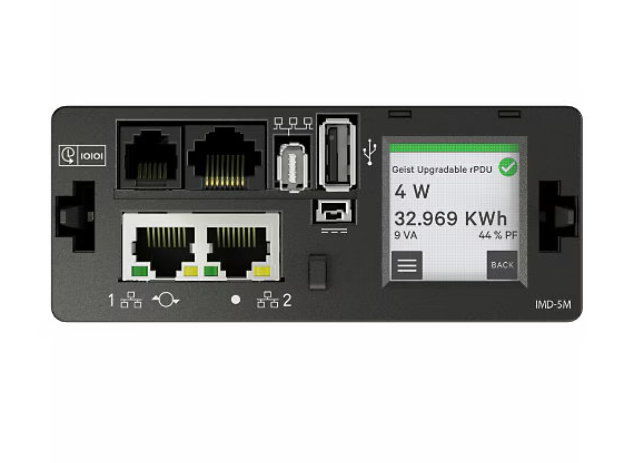

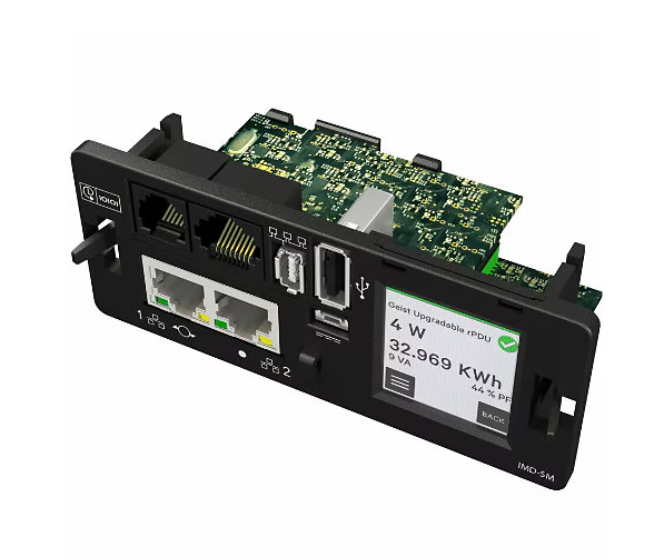

  • Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
  • VP5N30A0 is a rack mount PDU with 18 U-Lock C13 and 6 U-Lock C19 receptacles and a NEMA L21-30P plug
  • Helps ensure that data and operations are protected with the enhanced security features

AED11,399.00

Add to Wishlist

Know your gear

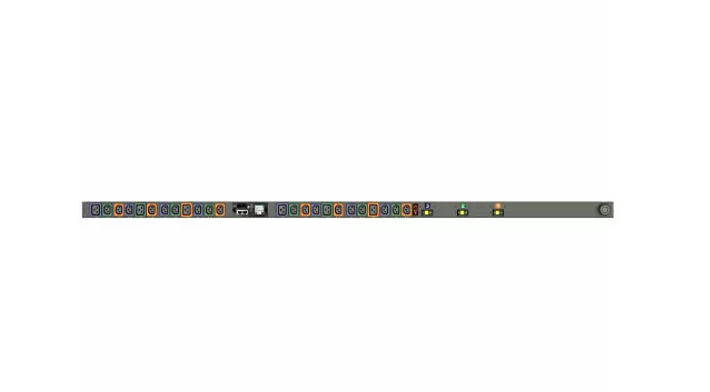

The Vertiv Geist Switched RPDU VP5N30A0 is a 30A, 120V/208V WYE, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (18) U-Lock C13 and (6) U-Lock C19 receptacles and a NEMA L21-30P plug providing 8.6kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
SKU: VP5N30A0 Category: Tag:
Overview
Field Value
Brand Vertiv Geist
Product Line Geist Upgradeable
Series N
Manufacturer Vertiv
Network & Communication
Field Value
Form Factor Rack
Modem
Field Value
Modem (RJ-11) No
Modem (RJ-12) Yes
Modem (RJ-22) No
Connectivity
Field Value
Network (RJ-45) Yes
Serial Port Yes
USB Yes
Display & Graphics
Field Value
Video Interfaces U-Lock IEC 60320 C13, U-Lock IEC 60320 C19
Video
Field Value
Camera Mechanical Design Rack-mountable
Power
Field Value
Input Current 30 ampere
Input Voltage 120 V AC, 230 V AC
Input Voltage Range 100 V AC – 120 V AC, 200 V AC – 240 V AC
Output Voltage 120 V AC, 208 V AC
Plug Type NEMA L21-30P
Power Rating (Watt) 8600 watt
Remote Outlet Switching Yes
Cables
Field Value
Cord Length 10 ft
Technical Information
Field Value
Locking Receptacles Ulock
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+
PDU Type Switched
Phase Three Phase
Product Information
Field Value
Country of Origin United States
Features LCD Display, Touch Screen Display
Mounting Orientation Vertical
Product Type PDU
Dimensions & Weight
Field Value
Height 66.3 inch
Height (Rack Units) 0U
Weight 22 lb
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Field Value
Color Family Black
Color Category Black
