Vertiv Geist VP7N6013 | rPDU | Combination C13/C19 | 60A | 240/415V WYE | 0U

Add to Wishlist

Quick tech specs

  • Allows users to remotely reboot outlets to power cycle unresponsive IT equipment.
  • Simplify remote management of up to 50 intelligent rPDUs on a single IP address
  • 36 Combination C13/C19 Outlets that accommodate C14 and C20 plugs interchangeably
  • Individually tested, meets local compliance requirements: TAA Compliance, RoHS, China RoHS, UL

AED29,499.00

Add to Wishlist

Know your gear

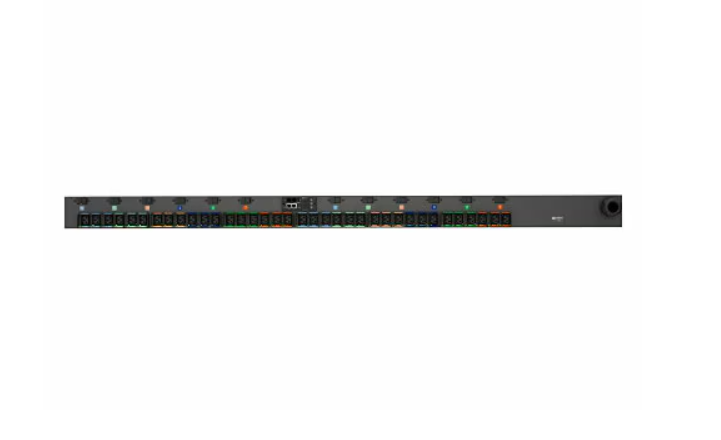

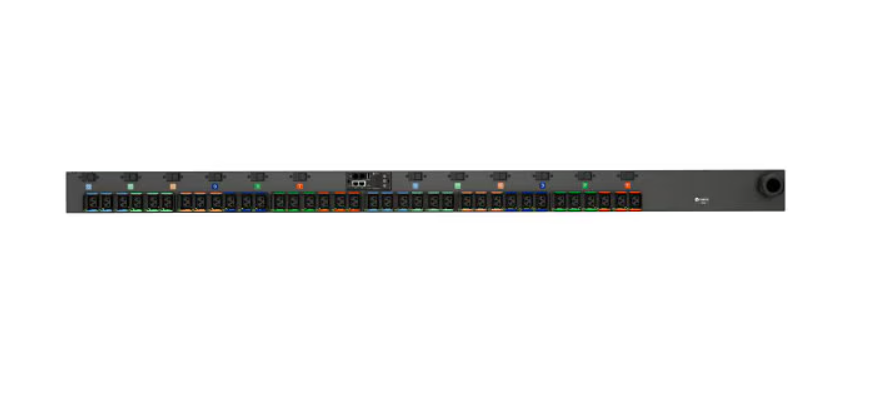

The Vertiv Geist VP7N6013 is a switched outlet level monitored rack power distribution unit (rPDU). It is a 60A, 240/415V WYE, 0U, vertical rPDU with input and outlet level power monitoring and outlet level switching. The 36 Combination C13/C19 outlets and a 3P+N+E (IP67) plug comes with a 3m cord, providing 34.5kW of power capacity. The switched rPDU allows you to turn off outlets to avoid accidental overloads and remotely power cycle equipment to reboot unresponsive critical IT equipment. The hot-swappable Interchangeable Monitoring Device (IMD) provides unit level monitoring, serial communication, and environmental monitoring. The dual ethernet ports simplify multiple-PDU management with fault-tolerant daisy chaining or IP aggregation capabilities. These UL-listed, TAA-Compliant monitored rPDU are individually tested for functionality and reliability, and comes with a standard three-year warranty, which can be extended to five years if registered within 120 days after purchase.
SKU: VP7N6013 Category: Tag:
Overview
Attribute Value
Brand Vertiv Geist
Model MNU3EPB1-36CF13-6PS56D0A10-S
Series rPDU
Manufacturer Vertiv
Network & Communication
Attribute Value
Form Factor Vertical
Connectivity
Attribute Value
Network (RJ-45) Yes
Display & Graphics
Attribute Value
Video Interfaces Combination C13/C19
Video
Attribute Value
Camera Mechanical Design Rack-mountable
Power
Attribute Value
Input Current 60 ampere
Input Frequency 60 hertz
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC, 346 V AC – 415 V AC
Output Voltage 240 V AC
Plug Type IEC 60309 60A 3P+N+E
Power Rating (Watt) 34.50 kilograms per millimetere
Remote Outlet Switching Yes
Cables
Attribute Value
Cord Length 10 ft
Technical Information
Attribute Value
Management DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP, CSV datalog, JSON API, JSON datalog
Max Operating Temperature 140 degree Fahrenheit
PDU Type Switched
Phase Three Phase
Product Information
Attribute Value
Country of Origin United States
Features LED Display
Mounting Orientation Vertical
Product Type PDU
Protection Type Overcurrent Protection, Single Pole
Usage IT Equipment
Dimensions & Weight
Attribute Value
Height (Rack Units) 0U
Length 66.3 inch
Width 3.8 inch
Physical Characteristics
Attribute Value
Color Family Black
Color Category Black Powder Coat
