Transfer Switches
Vertiv Micropod Mntenance Bypass 4EN 60320/C13 1EN 60320/C19
- Micropod maintenance bypass suitable for GXT5, GXT RT+, Edge UPS
- Compact
- Flexible Rack/Tower form factor
AED4,399.00

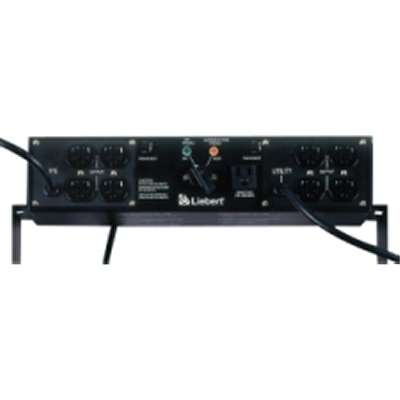

The Vertiv Liebert MP2-220L Micropod maintenance bypass and Power Output Distribution (POD) switch allows you to manually transfer the connected equipment to utility power via a maintenance bypass switch, permitting scheduled maintenance or UPS replacement without discontinuing power to the critical load. it is designed for Liebert GXT5-2000IRT2UXL and GXT5-3000IRT2UXL.
| General Information | |
| Product Name | Micropod Mntenance Bypass 4EN 60320/C13 1EN 60320/C19 |
| Manufacturer Part Number | MP2-220L |
| Product Line | MicroPOD |
| Product Type | Bypass Switch |
| Technical Information | |
| Plug / Connector Type | IEC 60320 C20 |
| Power Description | |
| Load Capacity (VA) | 3000 W |
| Input Voltage | 230 V AC |
| Current | 10 A16 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5″ |
| Width | 15.5″ |
| Depth | 3″ |
Based on 0 reviews
Be the first to review “Vertiv Micropod Mntenance Bypass 4EN 60320/C13 1EN 60320/C19”
