Power distribution unit

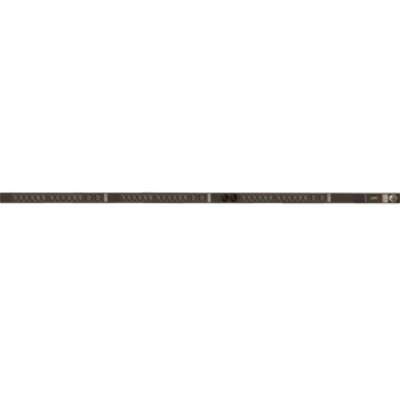

Vertiv Rpdu, Basic Standard, 20A, 120/208V Wye
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
AED4,899.00
 Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet. |
General Information
| Field | Details |
|---|---|
| Product Name | Rpdu, Basic Standard, 20A, 120/208V Wye |
| Manufacturer Part Number | 15205VH |
| Product Series | rPDU |
| Product Model | VHVBN449-102MB1TL21 |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| PDU Type | Basic |
| Phase | Three Phase |
| Plug / Connector Type | NEMA L21-20P |
| Plug / Connector Detail | 1 x NEMA L21-20P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19, NEMA 5-20R |
| Receptacle Detail | 36 x IEC 60320 C13 6 x IEC 60320 C19 2 x NEMA 5-20R |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 100 V AC – 120 V AC 200 V AC – 240 V AC |
| Output Voltage | 120 V AC, 208 V AC |
| Power Rating (Watt) | 5700 W |
| Input Current | 20 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable Cabinet-mountable |
| Width | 2″ |
| Depth | 2″ |
| Length | 66.3″ |
