Power distribution unit

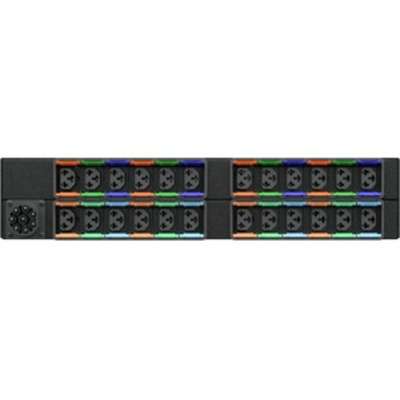

Vertiv Rpdu, Basic Standard, Max 22.0KW
- Reliable rack power distribution.
- Every unit is 100% tested for reliability and functionality.
- Simple and convenient configuration options for cord lengths and chassis colors.
AED11,499.00
Basic rPDUs deliver reliable power to critical IT equipment within a rack or cabinet.
General Information
| Field | Details |
|---|---|
| Product Name | Rpdu, Basic Standard, Max 22.0KW |
| Manufacturer Part Number | U1077 |
| Product Series | rPDU |
| Product Model | DU00X2R1-24CF17-2S02A9H00-S |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| PDU Type | Basic |
| Phase | Single Phase/Three Phase |
| Plug / Connector Type | Universal Input |
| Plug / Connector Detail | 1 x Universal Input |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 24 x Combination C13/C19 |
| Protection Type | Overcurrent Protection, Double Pole |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 240 V AC, 415 V AC |
| Power Rating (Watt) | 22 kW |
| Input Current | 32 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable Cabinet-mountable |
| Rack Height | 2U |
| Height | 3.4″ |
| Width | 17″ |
| Depth | 9″ |
