Vertiv Rpdu, Basic Upgradeable, 60A/63A, 200-240V, 13.8KW, Vertical, (36) Combination C13

Add to Wishlist
  • Offers a reliable, space-saving, and cost-effective power distribution for all IT applications
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Unit is tested to meet local compliance requirements: UL, CE, RoHS, China RoHS, and TAA

AED15,699.00

Add to Wishlist

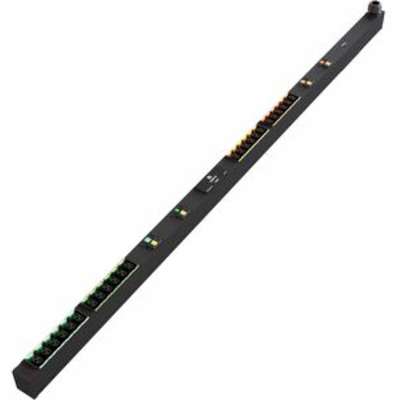

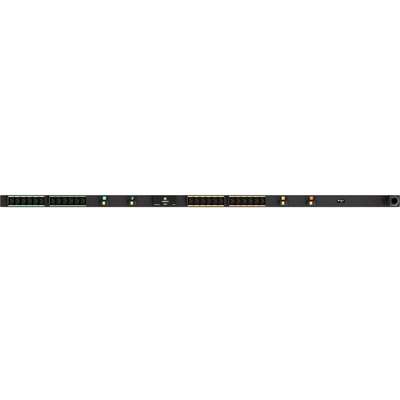

The Vertiv PowerIT VP1U60A0 is a basic high density rack power distribution unit (rPDU). It is a 60/63A, 240V, 0U, vertical rPDU with 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit.

SKU: VP1U60A0 Category: Tag:

General Information

Field Details
Product Name Rpdu, Basic Upgradeable, 60A/63A, 200-240V, 13.8KW, Vertical, (36) Combination C13
Manufacturer Part Number VP1U60A0
Product Line Geist Upgradeable
Product Series G
Product Type PDU

Technical Information

Field Details
PDU Type Basic
Phase Single Phase
Plug / Connector Type 1P+N+E (IP44)
Plug / Connector Detail 1 x 1P+N+E (IP44)
Receptacle Type Combination C13/C19
Receptacle Detail 36 x Combination C13/C19
Protection Type Overcurrent Protection

Interfaces/Ports

Field Details
Network (RJ-45) No

Management

Field Details
Management No
Remote Outlet Switching No

Power Description

Field Details
Input Voltage 230 V AC
Output Voltage 240 V AC
Power Rating (Watt) 14.40 kW
Input Current 63 A

Physical Characteristics

Field Details
Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Form Factor Rack
Rack Height 0U
Cord Length 10 ft
Width 3.5″
Depth 2.6″
Length 70″
