Power distribution unit
Vertiv Rpdu, Basic Upgradeable, 80A, 240/415V Wye, 57.6KW, Vertical, (36) Combination C13
- Offers a reliable, space-saving, and cost-effective power distribution for all IT applications
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Unit is tested to meet local compliance requirements: UL, CE, RoHS, China RoHS, and TAA
AED18,699.00

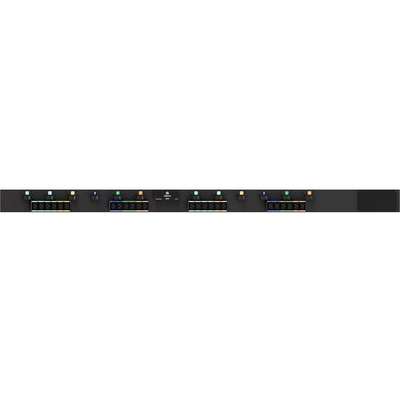

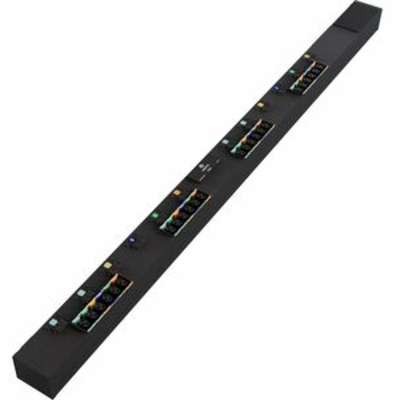

The Vertiv PowerIT VP1UA0A1 is a basic high density rack power distribution unit (rPDU). It is a 80A, 240/415V WYE, 0U, vertical rPDU with 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit.
General Information
| Field | Details |
|---|---|
| Product Name | Rpdu, Basic Upgradeable, 80A, 240/415V Wye, 57.6KW, Vertical, (36) Combination C13 |
| Manufacturer Part Number | VP1UA0A1 |
| Product Line | Geist Upgradeable |
| Product Series | G |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| PDU Type | Basic |
| Phase | Three Phase |
| Plug / Connector Type | Hardwired |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 36 x Combination C13/C19 |
| Protection Type | Overcurrent Protection |
Interfaces/Ports
| Field | Details |
|---|---|
| Network (RJ-45) | No |
Management
| Field | Details |
|---|---|
| Management | No |
| Remote Outlet Switching | No |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 230 V AC / 415 V AC |
| Output Voltage | 240 V AC |
| Power Rating (Watt) | 57.60 kW |
| Input Current | 80 A |
Physical Characteristics
| Field | Details |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Form Factor | Rack |
| Rack Height | 0U |
| Width | 3.8″ |
| Depth | 3″ |
| Length | 66.3″ |
