04 3550600 052 7036860

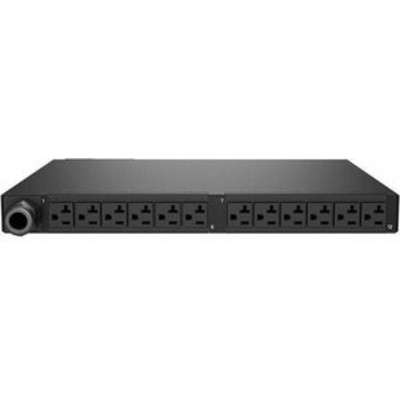

Vertiv Rpdu, Monitored Outlet Level EC, 20A, 120V, 1.9KW, Horizontal, (12) NEMA 5-20R, 10FT/3M

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

AED11,699.00

Add to Wishlist

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
SKU: VP6N21A0 Category: Tag:

General Information

Field Details
Product Name Rpdu, Monitored Outlet Level EC, 20A, 120V, 1.9KW, Horizontal, (12) NEMA 5-20R, 10FT/3M
Manufacturer Part Number VP6N21A0
Product Series rPDU
Product Model MNR5M1R5-12S203-2ST5A0H10-S
Product Type PDU

Technical Information

Field Details
PDU Type Monitored
Phase Three Phase
Plug / Connector Type NEMA 5-20P
Plug / Connector Detail 1 x NEMA 5-20P
Receptacle Type NEMA 5-20R
Receptacle Detail 12 x NEMA 5-20R
Load Capacity (Watt) 1900 W

Interfaces/Ports

Field Details
Network (RJ-45) Yes

Environmental Conditions

Field Details
Max Operating Temperature 140°F (60°C)

Power Description

Field Details
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 1900 W
Input Current 20 A
Input Frequency 60 Hz

Physical Characteristics

Field Details
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 1.7″
Width 17″
Depth 12″
