04 3550600 052 7036860

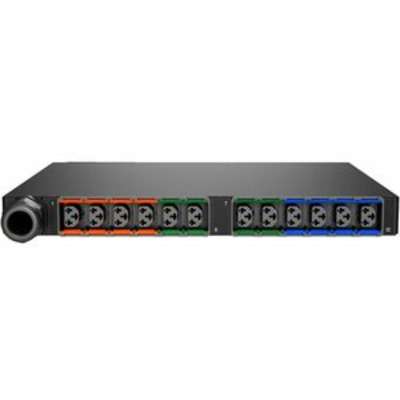

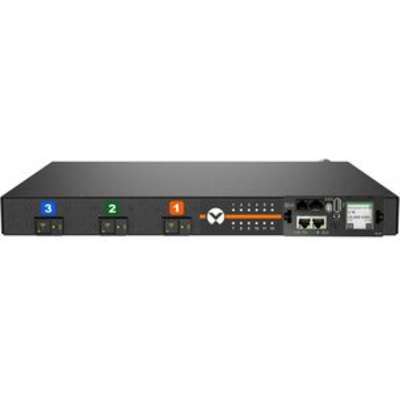

Vertiv Rpdu, Monitored Outlet Level EC, 30A, 240/415V Wye, 17.2KW, Horizontal, (12

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

AED15,799.00

Add to Wishlist

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

SKU: VP6N31A5 Category: Tag:

General Information

Field Details
Product Name Rpdu, Monitored Outlet Level EC, 30A, 240/415V Wye, 17.2KW, Horizontal, (12)
Manufacturer Part Number VP6N31A5
Product Series rPDU
Product Model MNR5M1R6-12CF13-3PS56B0H10-S
Product Type PDU

Technical Information

Field Details
PDU Type Monitored
Phase Three Phase
Plug / Connector Type IEC 60309 3P + N + E (IP44)
Plug / Connector Detail 1 x IEC 60309 3P + N + E (IP44)
Receptacle Type Combination C13/C19
Receptacle Detail 12 x Combination C13/C19
Protection Type Overcurrent Protection, Single Pole
Load Capacity (Watt) 17.20 kW

Interfaces/Ports

Field Details
Network (RJ-45) Yes

Environmental Conditions

Field Details
Max Operating Temperature 140°F (60°C)

Power Description

Field Details
Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC, 346 V AC – 415 V AC
Output Voltage 240 V AC
Power Rating (Watt) 17.20 kW
Input Current 30 A
Input Frequency 60 Hz

Physical Characteristics

Field Details
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 1.7″
Width 17″
Depth 12″
