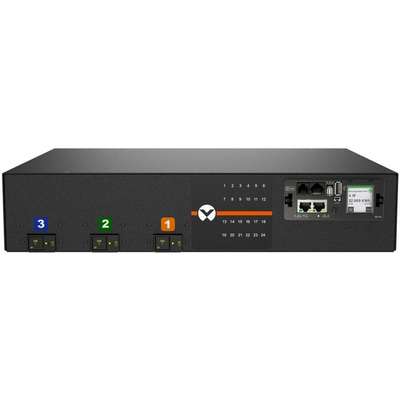

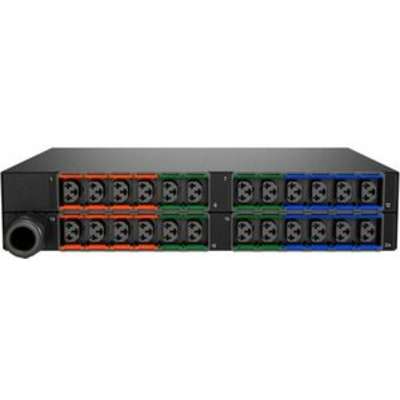

Vertiv Rpdu, Monitored Outlet Level EC, 60A, 208V Delta, 17.2KW, Horizontal, (12) Combination

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant
  • Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

AED20,999.00

Add to Wishlist

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

SKU: VP6N62A0 Category: Tag:
Category Attribute Details
General Information Product Name Rpdu, Monitored Outlet Level EC, 50A, 208V Delta, 14.4KW, Horizontal, (12) Combination
Manufacturer Part Number VP6N52A0
Product Series rPDU
Product Model MNR5MDR6-12CF18-5CS15A0H10-S
Product Type PDU
Technical Information PDU Type Monitored
Phase Three Phase
Plug / Connector Type 3P+E CA
Plug / Connector Detail 1 x 3P+E CA
Receptacle Type Combination C13/C19
Receptacle Detail 12 x Combination C13/C19
Protection Type Overcurrent Protection, Double Pole
Load Capacity (Watt) 14.40 kW
Interfaces/Ports Network (RJ-45) Yes
Environmental Conditions Maximum Operating Temperature 140°F (60°C)
Power Description Input Voltage 120 V AC, 230 V AC
Input Voltage Range 100 V AC – 120 V AC, 200 V AC – 240 V AC
Output Voltage 208 V AC
Power Rating (Watt) 14.40 kW
Input Current 50 A
Input Frequency 60 Hz
Physical Characteristics Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable, Recess-mountable
Rack Height 2U
Cord Length 10 ft
Height 3.4″
Width 17″
Depth 12″
