Power distribution unit

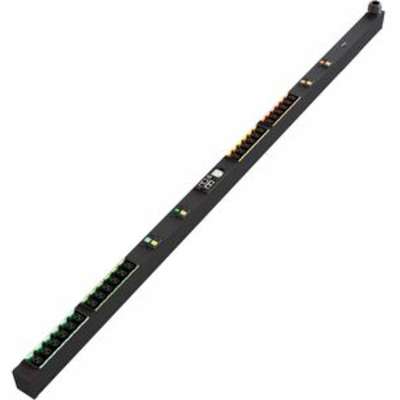

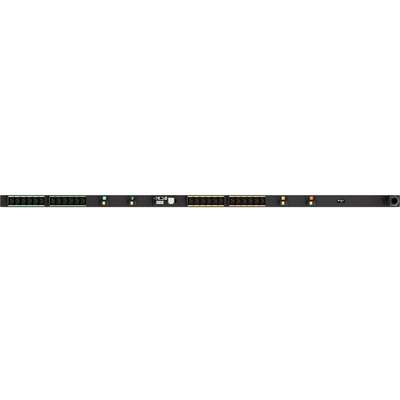

Vertiv Rpdu, Monitored Unit Level, 60A/63A, 200-240V, 13.8KW, Vertical, (36) Combination C13
- Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
- Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
- Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
- Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director
AED17,899.00
The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4U60A0 is an upgradeable, 60/63A, 240V, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a 1P+N+E (IP44) plug providing 14.4kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | Rpdu, Monitored Unit Level, 60A/63A, 200-240V, 13.8KW, Vertical, (36) Combination C13 |
| Manufacturer Part Number | VP4U60A0 | |
| Product Line | Geist Upgradeable | |
| Product Series | G | |
| Product Type | PDU | |
| Technical Information | PDU Type | Monitored |
| Phase | Single Phase | |
| Plug / Connector Type | 1P+N+E (IP44) | |
| Plug / Connector Detail | 1 x 1P+N+E (IP44) | |
| Receptacle Type | Combination C13/C19 | |
| Receptacle Detail | 36 x Combination C13/C19 | |
| Protection Type | Overcurrent Protection | |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Management | Remote Outlet Switching | No |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 240 V AC | |
| Power Rating (Watt) | 14.40 kW | |
| Input Current | 63 A | |
| Physical Characteristics | Color Family | Black |
| Product Color | Black | |
| Mounting Orientation | Vertical | |
| Mount Type | Rack-mountable | |
| Form Factor | Rack | |
| Rack Height | 0U | |
| Cord Length | 10 ft | |
| Width | 3.5″ | |
| Depth | 2.6″ | |
| Length | 70″ |
