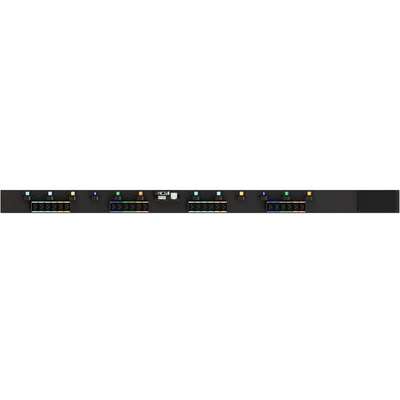

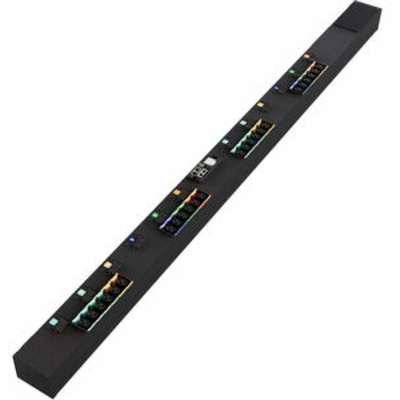

Vertiv Rpdu, Monitored Unit Level, 80A, 240/415V Wye, 57.6KW, Vertical, (36) Combination C13


  • Seamlessly upgrade your rPDU with the hot-swappable Interchangeable Monitoring Device (IMD-5M)
  • Connect both C14 and C20 plugs interchangeably via the Combination C13/C19 receptacle
  • Secure connections with the high-retention, color-coded receptacle that is P-Lock cable-compatible
  • Streamline deployment of up to 50 devices on a single IP address with Vertiv Intelligence Director

AED20,999.00

The Vertiv PowerIT Monitored High Density Rack Power Distribution Unit (rPDU) VP4UA0A1 is an upgradeable, 80A, 240/415V WYE, 0U, vertical rPDU with input monitoring. It has 36 Combination C13/C19 outlets that provide the flexibility to connect C14 and C20 plugs in the same outlet interchangeably. This unit also comes with a hardwired input plug providing 57.6kW of power capacity. The hot-swappable Interchangeable Monitoring Device (IMD-5M) has ports for serial communication and environmental monitoring, while the dual gigabit ethernet ports simplify the management of multiple PDUs with fault-tolerant daisy chaining or IP aggregation capabilities. This model is UL/CE dual listed, meeting an important requirement for data centers. It is also RoHS-certified and individually tested for functionality to ensure your network is powered by a reliable power distribution unit.

SKU: VP4UA0A1 Category: Tag:

General Information

Attribute Value
Product Name Rpdu, Monitored Unit Level, 80A, 240/415V Wye, 57.6KW, Vertical, (36) Combination C13
Manufacturer Part Number VP4UA0A1
Product Line Geist Upgradeable
Product Series G
Product Type PDU

Technical Information

Attribute Value
PDU Type Monitored
Phase Three Phase
Plug / Connector Type Hardwired
Receptacle Type Combination C13/C19
Receptacle Detail 36 x Combination C13/C19
Protection Type Overcurrent Protection

Interfaces/Ports

Attribute Value
Network (RJ-45) Yes

Management

Attribute Value
Remote Outlet Switching No

Power Description

Attribute Value
Input Voltage 230 V AC / 415 V AC
Output Voltage 240 V AC
Power Rating 57.60 kW
Input Current 80 A

Physical Characteristics

Attribute Value
Color Family Black
Product Color Black
Mounting Orientation Vertical
Mount Type Rack-mountable
Form Factor Rack
Rack Height 0U
Width 3.8″
Depth 3″
Length 66.3″
