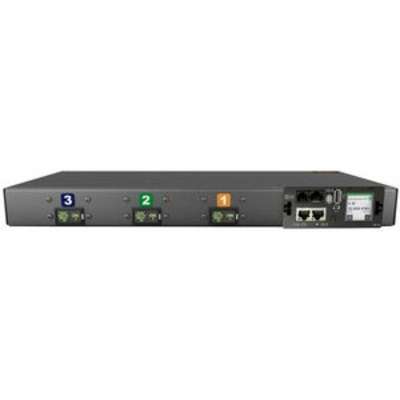

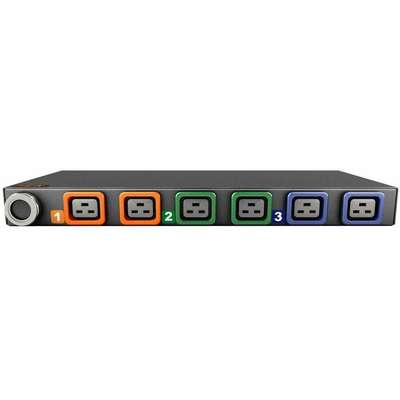

Vertiv Rpdu, Monitored Unit Level EC, 30A, 120/208V Wye, 8.6KW, Horizontal, (6) Lockingiec C19

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a breakin the network chain occurs. Supports up to 40 rPDUs.
  • Every unit is 100% tested for reliability and functionality.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

AED10,199.00

Add to Wishlist

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

SKU: VP4N31A3 Category: Tag:
Category Attribute Details
General Information Product Name Rpdu, Monitored Unit Level EC, 30A, 120/208V Wye, 8.6KW, Horizontal, (6) Locking IEC C19
Manufacturer Part Number VP4N31A3
Product Series rPDU
Product Model MN05M1R1-06L198-3TL21A0H10-S
Product Type PDU
Technical Information PDU Type Monitored
Plug / Connector Type NEMA L21-30P
Plug / Connector Detail 1 x NEMA L21-30P
Receptacle Type U-Lock IEC 60320 C19
Receptacle Detail 6 x U-Lock IEC 60320 C19
Protection Type Overcurrent Protection, Double Pole
Load Capacity Load Capacity (Watt) 8600 W
Interfaces/Ports Network (RJ-45) Yes
Environmental Conditions Max Operating Temp 140°F (60°C)
Power Description Input Voltage 230 V AC, 120 V AC
Input Voltage Range 200–240 V AC, 100–120 V AC
Output Voltage 208 V AC
Power Rating 8600 W
Input Current 30 A
Input Frequency 60 Hz
Physical Characteristics Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Rack Height 1U
Cord Length 10 ft
Height 1.7″
Width 17″
Depth 8.5″
