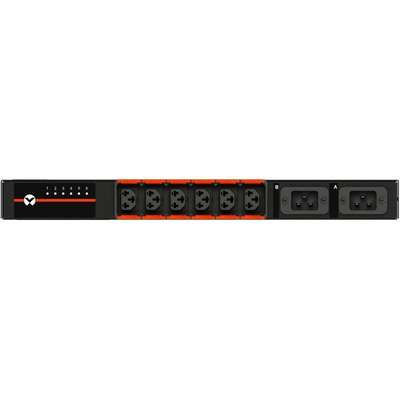

Vertiv Rpdu, Rack Transfer Switch Monitored Outlet Level, 16A Or 20A, 120V Or 208V Or 230V, 1.9KW

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
  • Every unit is 100% tested for reliability and functionality.

AED14,499.00

Add to Wishlist

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase- syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.

SKU: VA6U21A0 Category: Tag:

General Information

Attribute Value
Product Name Rpdu, Rack Transfer Switch Monitored Outlet Level, 16A Or 20A, 120V Or 208V Or 230V, 1.9KW
Manufacturer Part Number VA6U21A0
Product Series rPDU
Product Model AUR5M1R5-06CF17-2C20C20A900-D
Product Type PDU

Technical Information

Attribute Value
PDU Type Auto Transfer Switch, Monitored
Plug / Connector Type IEC 60320 C20
Plug / Connector Detail 2 x IEC 60320 C20
Receptacle Type Combination C13/C19
Receptacle Detail 6 x Combination C13/C19
Load Capacity (Watt) 3600 W

Interfaces/Ports

Attribute Value
Network (RJ-45) Yes

Environmental Conditions

Attribute Value
Maximum Operating Temperature 140°F (60°C)

Power Description

Attribute Value
Input Voltage 230 V AC / 120 V AC
Input Voltage Range 100 V AC – 240 V AC
Output Voltage 120 V AC / 208 V AC / 230 V AC
Output Voltage Range 100 V AC – 240 V AC
Power Rating (Watt) 3600 W
Input Current 20 A
Input Frequency 60 Hz

Physical Characteristics

Attribute Value
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Height 1.7″
Width 17″
Depth 18″
