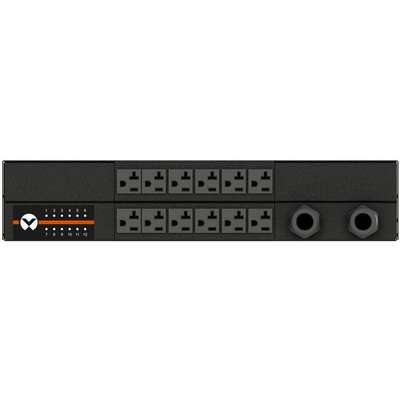

Vertiv Rpdu, Rack Transfer Switch Monitored Outlet Level, 30A, 120V, 2.8KW, Horizontal, (12) NEMA 5

Add to Wishlist
  • Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.

AED19,099.00

Add to Wishlist

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase- syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.

SKU: VA6N32A0 Category: Tag:

General Information

Attribute Value
Product Name Rpdu, Rack Transfer Switch Monitored Outlet Level, 30A, 120V, 2.8KW, Horizontal, (12) NEMA 5
Manufacturer Part Number VA6N32A0
Product Series rPDU
Product Model ANR5M2R6-12S203-3TL5TL5A011-D
Product Type PDU

Technical Information

Attribute Value
PDU Type Auto Transfer Switch, Monitored
Plug / Connector Type NEMA L5-30P
Plug / Connector Detail 2 x NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 12 x NEMA 5-20R
Protection Type Overcurrent Protection, Single Pole
Load Capacity (Watt) 2800 W

Interfaces/Ports

Attribute Value
Network (RJ-45) Yes

Environmental Conditions

Attribute Value
Maximum Operating Temperature 140°F (60°C)

Power Description

Attribute Value
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 2800 W
Input Current 30 A
Input Frequency 60 Hz

Physical Characteristics

Attribute Value
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 3.4″
Width 17″
Depth 18″
