Power distribution unit

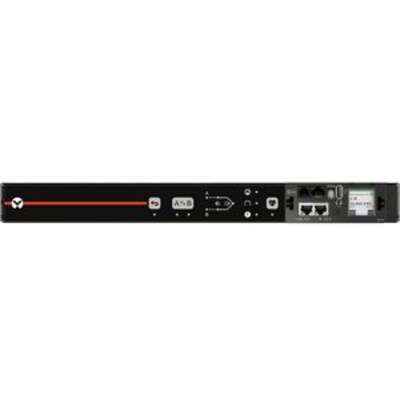

Vertiv Rpdu, Rack Transfer Switch Switched Unit Level Monitoring, 15A, 120V, 1.4KW, Horizontal
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
AED14,399.00
Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase- syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.
| Category | Attribute | Value |
|---|
| General Information | Product Name | Rpdu, Rack Transfer Switch Switched Unit Level Monitoring, 15A, 120V, 1.4KW, Horizontal, (6) |
| Manufacturer Part Number | VA5N11A0 |
| Product Series | rPDU |
| Product Model | ANS5M1R5-06S153-1ST5ST5A011-D |
| Product Type | PDU |
| Technical Information | PDU Type | Auto Transfer Switch, Switched |
| Plug / Connector Type | NEMA 5-15P |
| Plug / Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Load Capacity (Watt) | 1400 W |
| Interfaces/Ports | Network (RJ-45) | Yes |
| Environmental Conditions | Max Operating Temperature | 140°F (60°C) |
| Management | Remote Outlet Switching | Yes |
| Power Description | Input Voltage | 120 V AC |
| Input Voltage Range | 100 V AC – 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 1400 W |
| Input Current | 15 A |
| Input Frequency | 60 Hz |
| Physical Characteristics | Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Height | 1.7″ |
| Width | 17″ |
| Depth | 18″ |
