04 3550600 052 7036860

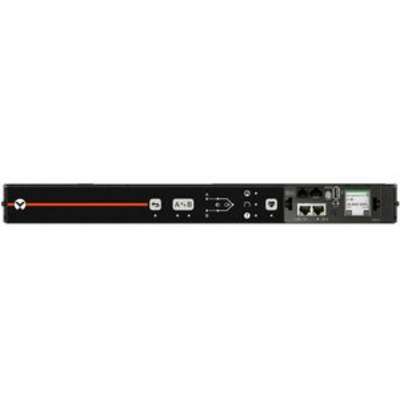

Vertiv Rpdu, Rack Transfer Switch Switched Unit Level Monitoring, 30A, 120V, 2.8KW, Horizontal

Add to Wishlist
  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

AED18,099.00

Add to Wishlist

Rack Transfer Switch (RTS) delivers redundant power to single corded devices. The RTS automatically detects the loss of power and switches the power load (no phase- syncronization required) to the alternative power source in less than 4-8 milliseconds without the need for human intervention.

SKU: VA5N32A0 Category: Tag:
Category Attribute Value
General Information Product Name Rpdu, Rack Transfer Switch Switched Unit Level Monitoring, 30A, 120V, 2.8KW, Horizontal, (12)
Manufacturer Part Number VA5N32A0
Product Series rPDU
Product Model ANS5M2R6-12S203-3TL5TL5A011-D
Product Type PDU
Technical Information PDU Type Auto Transfer Switch, Switched
Plug / Connector Type NEMA L5-30P
Plug / Connector Detail 2 x NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 12 x NEMA 5-20R
Protection Type Overcurrent Protection, Single Pole
Load Capacity (Watt) 2800 W
Interfaces/Ports Network (RJ-45) Yes
Environmental Conditions Max Operating Temperature 140°F (60°C)
Management Remote Outlet Switching Yes
Power Description Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 2800 W
Input Current 30 A
Input Frequency 60 Hz
Physical Characteristics Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 3.4″
Width 17″
Depth 18″

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Vertiv Rpdu, Rack Transfer Switch Switched Unit Level Monitoring, 30A, 120V, 2.8KW, Horizontal”

There are no reviews yet.
