04 3550600 052 7036860

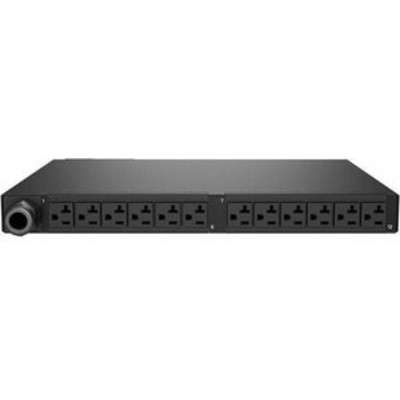

Vertiv Rpdu, Switched Outlet Level Monitoring EC, 20A, 120V, 1.9KW, Horizontal, (12) NEMA 5

Add to Wishlist
  • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
  • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
  • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
  • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
  • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices

AED12,299.00

Add to Wishlist

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.



SKU: VP7N21A0 Category: Tag:
General Information
Product Name Rpdu, Switched Outlet Level Monitoring EC, 20A, 120V, 1.9KW, Horizontal, (12) NEMA 5
Manufacturer Part Number VP7N21A0
Product Series rPDU
Product Model MNU5M1R5-12S203- 2ST5A0H10-S
Product Type PDU
Technical Information
PDU Type Switched
Plug / Connector Type NEMA 5-20P
Plug / Connector Detail 1 x NEMA 5-20P
Receptacle Type NEMA 5-20R
Receptacle Detail 12 x NEMA 5-20R
Load Capacity (Watt) 1900 W
Interfaces/Ports
Network (RJ-45) Yes
Environmental Conditions
Maximum Operating Temperature 140°F (60°C)
Management
Remote Outlet Switching Yes
Power Description
Input Voltage 120 V AC
Input Voltage Range 100 V AC – 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 1900 W
Input Current 20 A
Input Frequency 60 Hz
Physical Characteristics
Color Family Black
Product Color Black Powder Coat
Mounting Orientation Horizontal
Mount Type Rack-mountable
Cord Length 10 ft
Height 1.7″
Width 17″
Depth 12″
