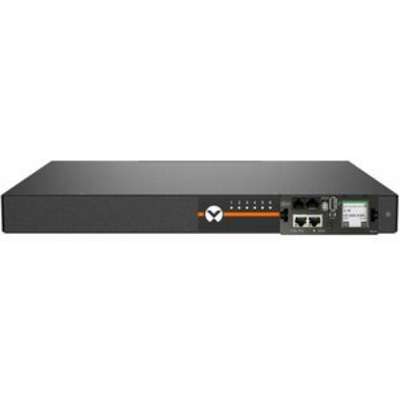

The Vertiv Geist Switched RPDU VP5N11A0 is a 15A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (6) NEMA 5-15R receptacles and a NEMA 5-15P plug providing 1.4kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128×128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
Power distribution unit
Vertiv Rpdu, Switched Unit Level Monitoring EC, 15A, 120V, 1.4KW, Horizontal, (6) NEMA5-15R
- Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
- VP5N11A0 is a rack mount PDU with (6) NEMA 5-15R receptacles and a NEMA 5-15P plug
- Vertiv Geist Next-Generation IMD has a 128×128 high-contrast LCD for monitoring data
- Helps ensure that data and operations are protected with the enhanced security features
- Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
AED8,799.00
Category | Specification |
---|
General Information |
Product Name | Rpdu, Switched Unit Level Monitoring EC, 15A, 120V, 1.4KW, Horizontal, (6) NEMA5-15R |
Manufacturer Part Number | VP5N11A0 |
Product Line | Geist Upgradeable |
Product Series | N |
Product Model | MNS3E1R5-06S153-1ST5A0H10-S |
Product Type | PDU |
Technical Information |
PDU Type | Switched |
Phase | Single Phase |
Plug / Connector Type | NEMA 5-15P |
Plug / Connector Detail | 1 x NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 6 x NEMA 5-15R |
Interfaces/Ports |
Network (RJ-45) | Yes |
Management |
Remote Outlet Switching | Yes |
Power Description |
Input Voltage | 120 V AC |
Input Voltage Range | 100 V AC – 120 V AC |
Output Voltage Range | 100 V AC – 120 V AC |
Power Rating (Watt) | 1400 W |
Input Current | 15 A |
Physical Characteristics |
Color Family | Black |
Product Color | Black |
Mounting Orientation | Horizontal |
Mount Type | Rack-mountable |
Form Factor | Rack |
Rack Height | 1U |
Cord Length | 10 ft |
Height | 1.7″ |
Width | 17″ |
Depth | 12″ |
